Autonics ADIO Series ADIO-IL-MA08CAP-HUB3

List Price:

$449.00

/each

Product Description

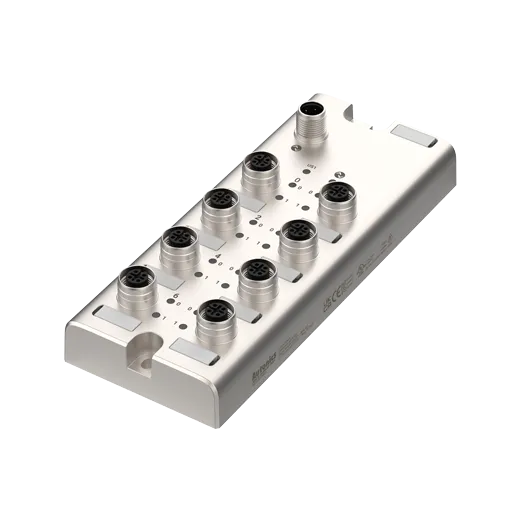

Autonics Remote I/o Systems, model ADIO-IL-MA08CAP-HUB3, from the ADIO Series product line.

Upper level comm. protocol: IO-Link ver. 1.1 (port class: Class A)
Lower level comm. protocol: -
I/O Number of ports: 8-port
I/O port connector type: M12
I/O Configuration: Digital input, 16-CH
Power supply port: -
I/O specification: PNP
Rated voltage: 24VDC@(=)
Power consumption: -
Supply current: 150 mA ±10%
Sensor current (US): -
Dimension: W 66 × H 165 × D 32 (20) mm
Material: Zinc Die casting
Unit weight (packaged weight): ≈ 550 g (≈ 750 g)
Ambient temperature: -5 to 70℃, Storage: -25 to 70℃ (no freezing or condensation)
Ambient humidity: 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
Protection structure: IP67(IEC standard), IP69K(DIN standard)
