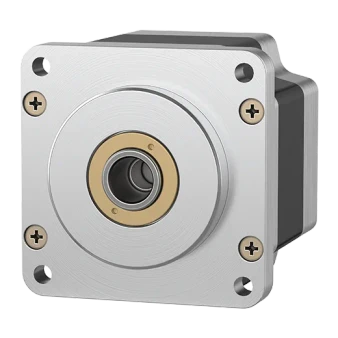

Autonics AHK Series AH63K-M5913

List Price:

$901.00

/each

Product Description

Autonics 5-phase Stepper Motors/drivers, model AH63K-M5913, from the AHK Series product line.

Basic Step Angle [FULL/HALF]: 0.72º/0.36º
Max. holding torque: 63kgf.cm
Rotor Moment Of Inertia: 4000g·cm²
Winding Resistance: 3.92Ω
Rated current: 1.4A/Phase
Motor length: 128mm
Shaft type: Single shaft
Wire connection: Pentagon
Protection structure: IP30
Reduction ratio: -
Allowable speed range: -
Backlash: -
ElectroMagnetic brake_Rated excitation voltage: 24VDC @(=)±10%(no-polarity)
ElectroMagnetic brake_Rated excitation current: 0.62A
ElectroMagnetic brake_Static friction torque: 40kgf.cm
ElectroMagnetic brake_Rotation part inertia moment: 153×10@(^-7)kgf.cm²
ElectroMagnetic brake_B type brake: Power on: brake is released, power off: brake is operating
ElectroMagnetic brake_Operating time: Max. 60ms
ElectroMagnetic brake_Releasing time: Max. 15ms
Absolute positon error: -
Lost motion: -
Weight: Approx. 4.28kg(approx. 3.8kg)
