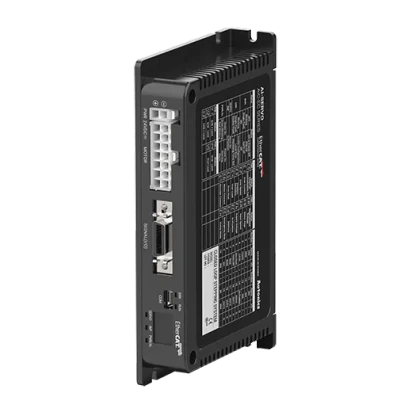

Autonics AiC-D-EC Series AiC-D-35SB-EC

List Price:

$693.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiC-D-35SB-EC, from the AiC-D-EC Series product line.

Driver_Comm. specifications: EtherCAT
Driver_Power supply: 24VDC @(=)
Driver_Max. Power: ≤ 60 W
Driver_Max. Run Current: 1.2A/Phase
Driver_Resolution: 500, 1000, 1600, 2000, 3600, 5000, 6400, 7200, 10000 (factory default), 16000 PPR
Driver_Operation Method: Bipolar constant current Drive
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Protection structure: IP20(IEC standard)
Driver_Unit weight(packaged): ≈ 350 g (≈ 500 g)
Motor_Max. Holding Torque: -
Motor_Rotor Moment Of Inertia: -
Motor_Rated Current: -
Motor_Basic Step Angle [FULL/HALF]: -
Motor_Winding Resistance: -
Motor phase: -
Motor_Operation Method: -
Motor_Environment_Ambient temperature: -
Motor_Environment_Ambient humidity: -
Motor_Protection structure: -
Motor_Output phase: -
Motor_Max. response frequency: -
Motor_Weight: -
Motor_Motor length: -
Motor_Resolution: -
