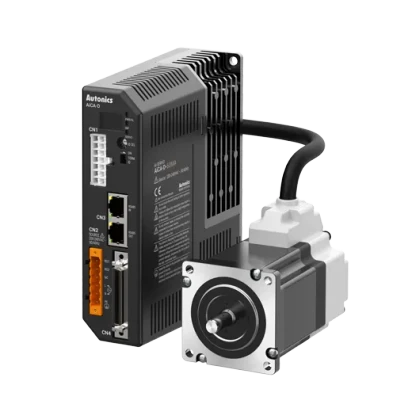

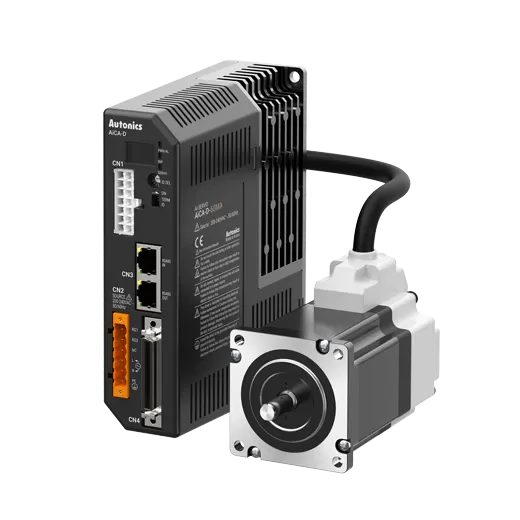

Autonics AiCA Series AiCA-60LA

List Price:

$1,230.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiCA-60LA, from the AiCA Series product line.

Driver_Applied Motor: Frame size 60mm 2-phase closed loop stepper motor
Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
Driver_Power supply: 200-240VAC~50/60Hz
Driver_Max. Run Current: 2A/Phase
Driver_Protection structure: IP20(IEC standard)
Driver_Approval: @(CE)
Motor_Basic Step Angle [FULL/HALF]: 1.8º/0.9º
Motor_Applied Driver: Frame size 60mm AC type 2-phase closed-loop stepper motor driver
Motor_Max. Holding Torque: 22.43kgf.cm
Motor_Rotor Moment Of Inertia: 490g·cm²
Motor_Winding Resistance: 2.4Ω
Motor_Rated Current: 2A/Phase
Motor_Motor length: 103.8mm
Motor_Shaft Type: Single shaft
Motor_Operation Method: Bipolar constant current Drive
Motor_Resolution: 10,000PPR(2,500PPR×4-multiply)
Motor_Output phase: A, @(A^), B, @(B^), Z, @(Z^)
Motor_Max. response frequency: 300kHz
Motor_Protection structure: IP30
Motor_Approval: @(CE)
Motor phase: 2-Phase
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight: Approx. 1,080g(approx. 800g)
Motor_Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Motor_Environment_Ambient humidity: 20 to 85%RH, storage: 15 to 90%RH
Motor_Weight: Approx. 1.35kg(approx. 1.15kg)
