Autonics AiCA-D Series AiCA-D-86MA

List Price:

$989.00

/each

Product Description

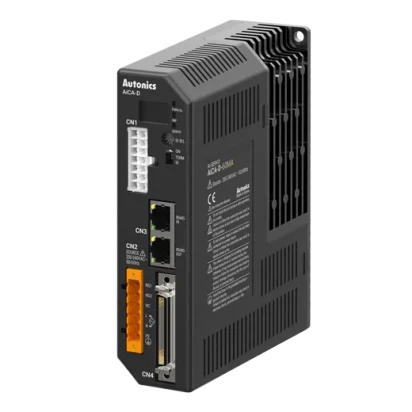

Autonics 2-phase Closed Loop Systems(inc), model AiCA-D-86MA, from the AiCA-D Series product line.

Driver_Applied Motor: Frame size 86mm 2-phase closed loop stepper motor
Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
Driver_Power supply: 200-240VAC~50/60Hz
Driver_Max. Run Current: 2A/Phase
Driver_Protection structure: IP20(IEC standard)
Driver_Approval: @(CE)
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight: Approx. 1,080g(approx. 800g)

Write a Review

Brand:

Autonics 2-phase Closed Loop Systems(inc), model AiCA-D-86MA, from the AiCA-D Series product line.

Driver_Applied Motor: Frame size 86mm 2-phase closed loop stepper motor
Driver_Resolution: 500, 1000, 1600, 2000, 3200, 3600, 5000, 6400, 7200, 10000 PPR(SW2)
Driver_Power supply: 200-240VAC~50/60Hz
Driver_Max. Run Current: 2A/Phase
Driver_Protection structure: IP20(IEC standard)
Driver_Approval: @(CE)
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -10 to 60℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight: Approx. 1,080g(approx. 800g)
