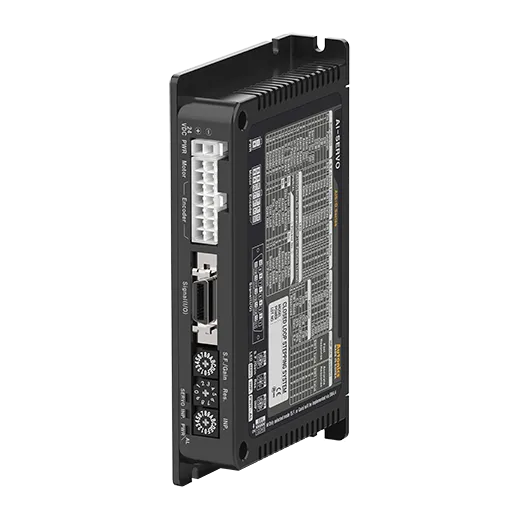

Autonics AiS-D Series AiS-D-35LB

List Price:

$404.00

/each

Product Description

Autonics 2-phase Closed Loop Systems(inc), model AiS-D-35LB, from the AiS-D Series product line.

Driver_Operation Method: Bipolar constant current Drive
Driver_Applied Motor: Frame size 35mm, shaft type, 2-phase closed-loop stepper motor(Ai-M-35LB)
Driver_Resolution: 500, 1000, 1600, 2000, 3600, 5000, 6400, 7200, 10000, 16000 PPR(SW2)
Driver_Power supply: 24VDC @(=)
Driver_Max. Run Current: 1.2A/Phase
Driver_Max. Power consumption: 60W
Driver_Output: In-Position, Alarm Out, Encoder signal (A, @(A^), B, @(B^), Z, @(Z^))
Driver_Protection structure: IP20
Driver_Approval: -
Motor_Basic Step Angle [FULL/HALF]: -
Motor_Max. Holding Torque: -
Motor_Rotor Moment Of Inertia: -
Motor_Winding Resistance: -
Motor_Rated Current: -
Motor_Motor length: -
Motor_Shaft Type: -
Motor_Operation Method: -
Motor_Resolution: -
Motor_Output phase: -
Motor_Max. response frequency: -
Motor_Protection structure: -
Motor_Approval: -
Motor phase: -
Driver_Environment_Ambient temperature: 0 to 50℃, storage: -20 to 70℃
Driver_Environment_Ambient humidity: 35 to 85%RH, storage: 10 to 90%RH
Driver_Weight: Approx. 400g(approx. 290g)
Motor_Number Of Axes: -
Motor_Environment_Ambient temperature: -
Motor_Environment_Ambient humidity: -
Motor_Weight: -
