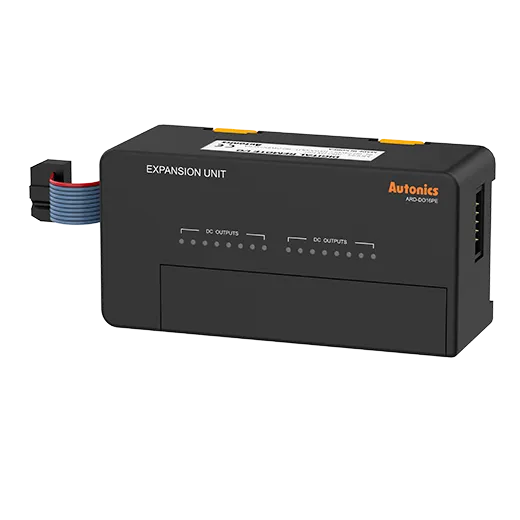

Autonics ARD-D Series ARD-DO16PE

List Price:

$210.00

/each

Product Description

Autonics Remote I/o Systems, model ARD-DO16PE, from the ARD-D Series product line.

Network: DeviceNet
Type: Digital
Number Of I/Os_Input: -
Number Of I/Os_Output: 16-point (PNP)
I/O specification: Voltage: 10-28VDC (voltage drop: max. 0.5V)</br>Current: 0.3A/point (leakage current: max. 0.5mA)
Module type: Expansion unit
Power supply: 24VDC @(=)
Protection structure: IP20
Material: Front case, Body Case: PC, Rubber cap: NBR
Insulation type: I/O and inner circuit: insulated, DeviceNet and inner circuit: non-insulated, Power and DeviceNet: non-insulated
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 75℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 140g

Write a Review

Brand:

Autonics Remote I/o Systems, model ARD-DO16PE, from the ARD-D Series product line.

Network: DeviceNet
Type: Digital
Number Of I/Os_Input: -
Number Of I/Os_Output: 16-point (PNP)
I/O specification: Voltage: 10-28VDC (voltage drop: max. 0.5V)</br>Current: 0.3A/point (leakage current: max. 0.5mA)
Module type: Expansion unit
Power supply: 24VDC @(=)
Protection structure: IP20
Material: Front case, Body Case: PC, Rubber cap: NBR
Insulation type: I/O and inner circuit: insulated, DeviceNet and inner circuit: non-insulated, Power and DeviceNet: non-insulated
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 75℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 140g
