Autonics ARIO Series ARIO-C-CL1

List Price:

$497.00

/each

Product Description

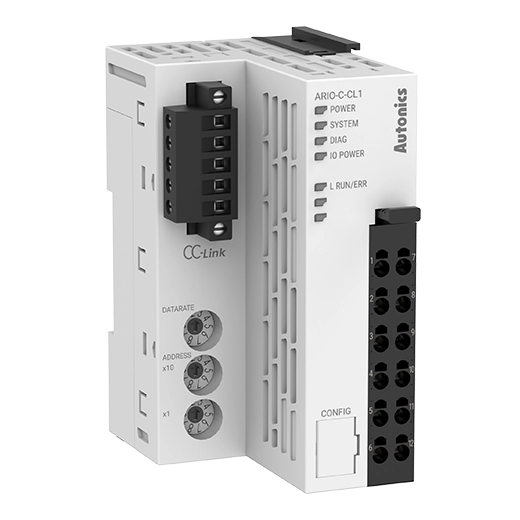

Autonics Remote I/o Systems, model ARIO-C-CL1, from the ARIO Series product line.

Protection circuit: Reverse field power protection circuit
Power supply: - ARIO unit: ≤ 9.6 W, ≤ 400 mA (≤ 200 mA/CH, 2-CH/COM)- Field: ≤ 96 W, ≤ 4,000 mA (≤ 2,000 mA/CH, 2-CH/COM)
Power supply: - Coupler input voltage: 24 VDC@(=)- ABUS supply voltage: 5 VDC@(=), ≤ 960 mA@(=)- Field supply voltage: 24 VDC@(=)
Current consumption: - The standby and run mode: 200 mA</br- The maximum load: 400 mA (at coupler max. load)
CONFIG port: USB 2.0 type Micro B
Transmission speed (ABUS): 4Mbps
Indicator: Coupler status indicator, field network status indicator
Material: Terminal: PBT, body: PC, base: PA6, POM
Mounting type: DIN rail mounting
Unit weight (packaged weight): ≈ 165 g (≈ 265 g)
Protocol: CC-Link (ver. 1.1)
Communication speed: 10Mbps
Comm. connector: 5-pin PCB connector
Memory size: 96 byte
Max. connections for modules: 32 units
Maximum connectable length: ≤ 384 mm
