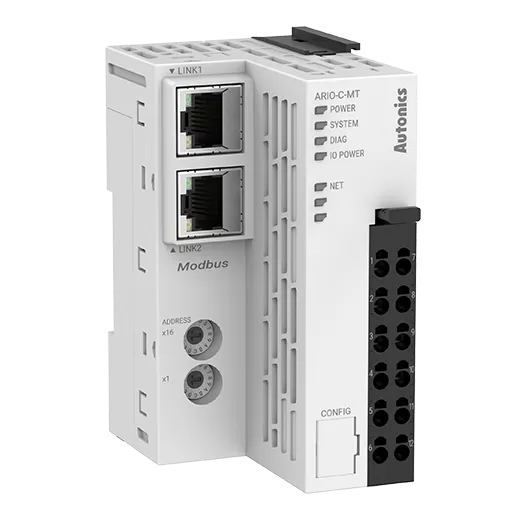

Autonics ARIO Series ARIO-C-MT

List Price:

$373.00

/each

Product Description

Autonics Remote I/o Systems, model ARIO-C-MT, from the ARIO Series product line.

Coupler type: ModbusTCP compatible
Power supply_BUS(external consump.): 24VDC 400mA (Max. 9.6W, Coupler+Module)
Power supply_BUS(internal supply): 960mA (Max. 4.8W, Module)
Power supply_I/O: 24VDC, max. 4,000mA (max. 96W, max. 2,000mA/CH, 2CH/COM)
Power consumption_Coupler: 24VDC standby/run: 200mA, max. load: 400mA (coupler max. load)
Communication speed: 10/100Mbps
Memory_Input: 512 byte
Memory_Output: 512 byte
Max. connections for modules: 64 units
Comm. connector: RJ45 connectors: 2
Mounting type: DIN rail mounting
Setting and monitoring: PC connection with USB 2.0 Micro type connector (comprehensive device management program, DAQMaster)
Insulation resistance: 100MΩ or more (500VDC megger basis)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
Material: Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene
Weight: Approx. 265g (approx. 165g)
