Autonics ARIO Series ARIO-S-AI04C2

List Price:

$323.00

/each

Product Description

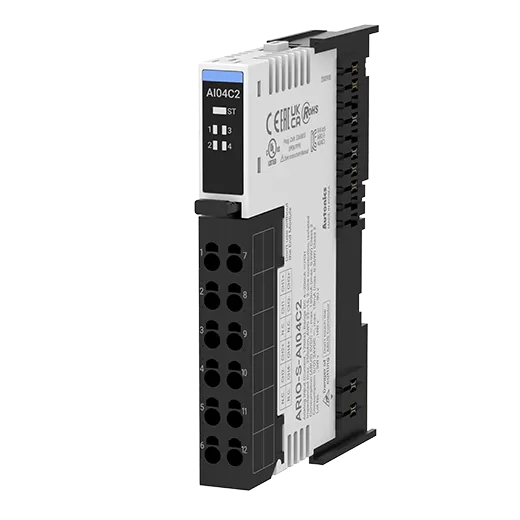

Autonics Remote I/o Systems, model ARIO-S-AI04C2, from the ARIO Series product line.

I/O method: Current input
I/O range: 4 to 20mA
Accuracy_Room temp.: ±0.3% F.S.
Accuracy_Out of room temp.: ±0.6% F.S.
Input impedance: Min. 1MΩ / Max. 250Ω
Load resistance: -
Status indicator ON conditions: ≥4mA
Resolution: 12bit
Power consumption_ABUS: 5VDC@(=), max. 180mA (max. 0.9W)
Power consumpti_I/O: 24VDC@(=), max. 15mA (max. 0.36W)
Mounting type: DIN rail mounting
Insulation resistance: 100MΩ (at 500VDC@(=) megger)</br>I/O to inner circuit: photocoupler insulated, between channels: non-insulated
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
Material: Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene
Weight: Approx. 75g(approx. 108g)
