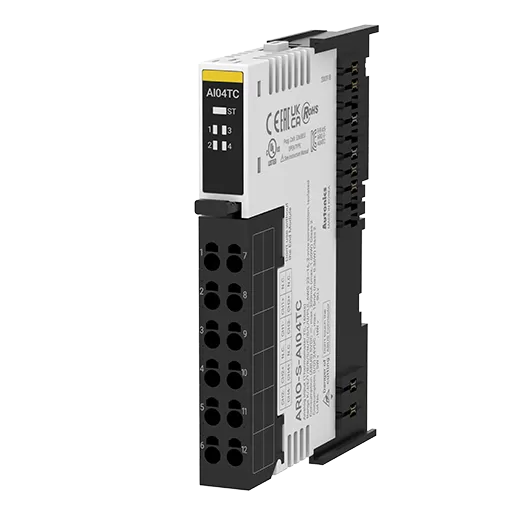

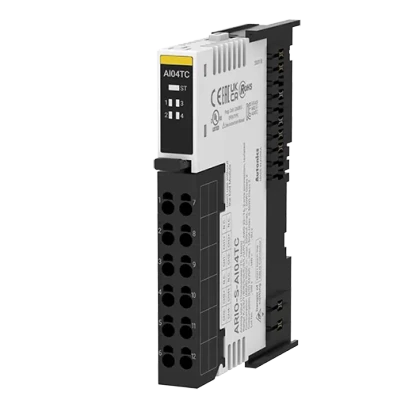

Autonics ARIO Series ARIO-S-AI04TC

List Price:

$443.00

/each

Product Description

Autonics Remote I/o Systems, model ARIO-S-AI04TC, from the ARIO Series product line.

I/O method: Voltage input
Display accuracy: ±0.2% F.S.(or ±2℃, select higher one) ±1 digit
Status indicator ON conditions: Temperature input within the rated range</br>※ No operation when the thermometer is not attached.
Resolution: 16bit
Power consumption_ABUS: 5VDC@(=), max. 180mA (max. 0.9W)
Power consumpti_I/O: 24VDC@(=), max. 15mA (max. 0.36W)
Mounting type: DIN rail mounting
Insulation resistance: 100MΩ (at 500VDC@(=) megger)</br>I/O to inner circuit: photocoupler insulated, between channels: non-insulated
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
Material: Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene
Weight: Approx. 108g (approx. 75g)

Write a Review

Brand:

Autonics Remote I/o Systems, model ARIO-S-AI04TC, from the ARIO Series product line.

I/O method: Voltage input
Display accuracy: ±0.2% F.S.(or ±2℃, select higher one) ±1 digit
Status indicator ON conditions: Temperature input within the rated range</br>※ No operation when the thermometer is not attached.
Resolution: 16bit
Power consumption_ABUS: 5VDC@(=), max. 180mA (max. 0.9W)
Power consumpti_I/O: 24VDC@(=), max. 15mA (max. 0.36W)
Mounting type: DIN rail mounting
Insulation resistance: 100MΩ (at 500VDC@(=) megger)</br>I/O to inner circuit: photocoupler insulated, between channels: non-insulated
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP20(IEC standard)
Material: Terminal: polyamide6, Body: modified polyphenylene oxide, Base: polyamide6, poly oxy methylene
Weight: Approx. 108g (approx. 75g)
