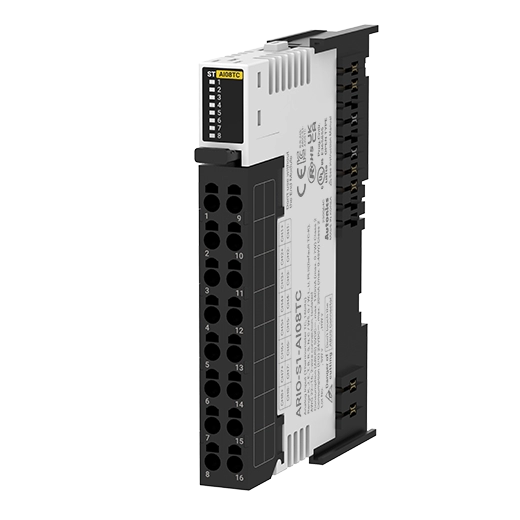

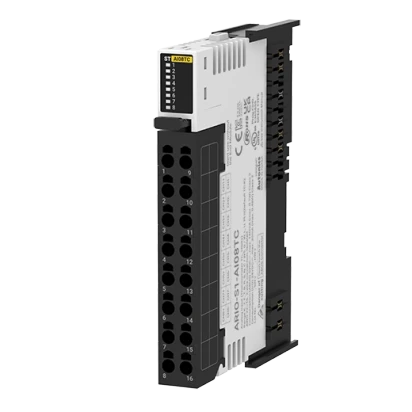

Autonics ARIO Series ARIO-S1-AI08TC

List Price:

$621.00

/each

Product Description

Autonics Remote I/o Systems, model ARIO-S1-AI08TC, from the ARIO Series product line.

Protection circuit: Reverse field power protection circuit
Insulation: I/O to internal circuit: photocoupler insulated / Between channels: non-insulated
Indicator: Module status indicator (green, red), channel status indicator (green)
Material: Terminal: PBT, body: PC, base: PA6, POM
Mounting type: DIN rail mounting
Unit weight (packaged weight): ≈ 75 g (≈ 108 g)
Channels: 8-channel
Data size: 16-byte
Resolution: 16bit
Power consumption_ABUS: ≤ 140 mA @ 5 VDC@(=) (≤ 0.7 W)
Accuracy: ±0.2% F.S (at room temperature: 23 ℃ ±5 ℃)
Temperature range: -200 ~ 2300 ℃
