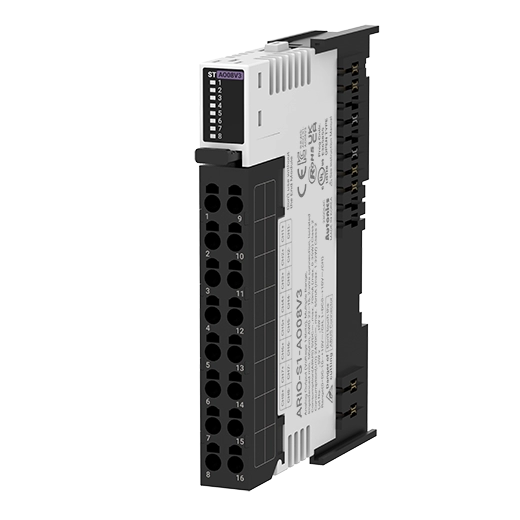

Autonics ARIO Series ARIO-S1-AO08V3

List Price:

$558.00

/each

Product Description

Autonics Remote I/o Systems, model ARIO-S1-AO08V3, from the ARIO Series product line.

Protection circuit: Reverse field power protection circuit
Transmission speed (ABUS): 4Mbps
Insulation: I/O to internal circuit: photocoupler insulated / Between channels: non-insulated
Indicator: Module status indicator (green, red), channel status indicator (green)
Material: Terminal: PBT, body: PC, base: PA6, POM
Mounting type: DIN rail mounting
Unit weight (packaged weight): ≈ 75 g (≈ 108 g)
Channels: 8-channel
I/O method: Voltage output
Data size: 16-byte
I/O range: ±10 VDC@(=) / 0 to 10 VDC@(=) (default)
Resolution: 14bit
Accuracy_Room temp.: ±0.1% F.S
Accuracy_Out of room temp.: ±0.5% F.S
Input impedance: -
Power consumption_ABUS: ≤ 70 mA @ 5 VDC@(=) (≤ 0.35 W)
