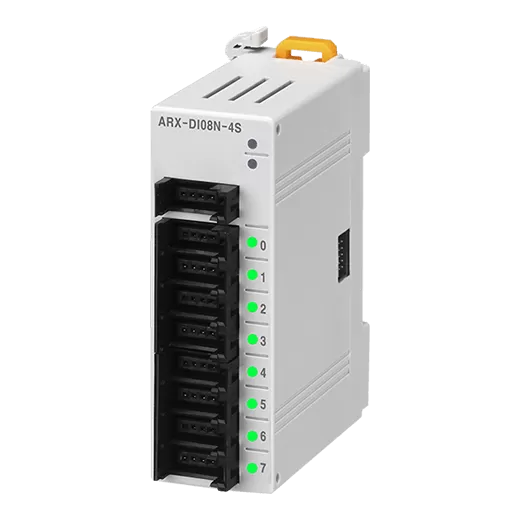

Autonics ARM Series ARX-DI08N-4S

List Price:

$137.00

/each

Product Description

Autonics Remote I/o Systems, model ARX-DI08N-4S, from the ARM Series product line.

Network: use in DeviceNet/Modbus
Type: Digital
Number Of I/Os_Input: 8-point (NPN)
Number Of I/Os_Output: -
I/O specification: Voltage: 10-28VDCCurrent: 10mA/point(sensor supplied current: 150mA/point)
Structure: Expansion unit
Power supply: 24VDC @(=)
Protection structure: IP20
Insulation type: I/O and inner circuit: photocoupler insulationModbus to internal bus and inner circuit: insulationUnit power: non-insulation
Material: Front case: PC, Body case: PC
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 75℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 117.5g(approx. 56g)
