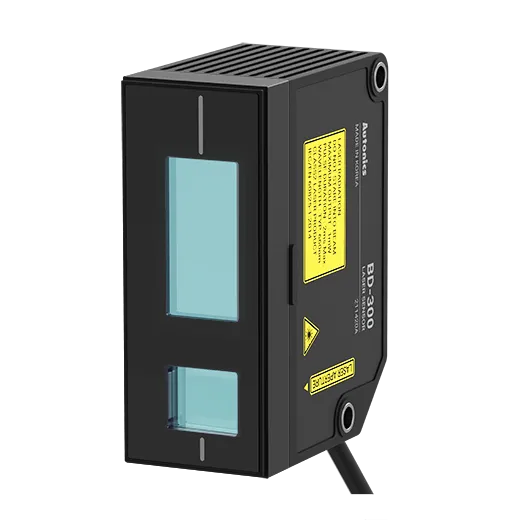

Autonics Displacement Sensors, model BD-300, from the BD Series product line.
Specifications
- Spot diameter: Near(160mm): ≈ 990×1,000 ㎛</br>Reference(300mm): ≈ 490×510 ㎛</br>Far(450mm): ≈ 365×355 ㎛
- Resolution: 20 ㎛
- Reference distance: 300mm
- Max. measurement range: 160 ~ 450 mm
- Linearity: ± 0.25% of F.S.
- Temperature Characteristics: 0.08% of F.S./℃
- Power supply: Using power from the amplifier unit.
- Light source: Red semiconductor laser (wavelength: 660nm, IEC 60825-1:2014)
- Light Source_Optical method: Diffuse reflection
- Light Source_Laser class: Class 2 (IEC/EN), Class II (FDA (CDRH) CFR Part 1002)
- Light Source_Output: ≤ 1 mW
- Laser Pulse duration: Max. 2ms
- Operation indicator: Power indicator: red LED, Laser emission indicator: green LED,</br>NEAR/FAR indicator: green LED
- Insulation resistance: Over 20MΩ (at 500VDC megger)
- Noise immunity: Square shaped noise by noise simulator (pulse width: 1㎲) ±500V
- Dielectric strength: Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
- Vibration: 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours
- Shock: 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
- Environment_Ambient illumination: Max. Incandescent lamp 10,000 lx
- Environment_Ambient temperature: -10 to 50℃, storage: -15 to 60℃
- Environment_Ambient humidity: 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
- Protection structure: IP67 (IEC Standards, except connector of extension cable)
- Material: Front case: AL, Rear case: PC, Cable: PVC, Sensing part: Glass
- Amplifier unit compatibility: BD Series amplifier unit: 1
- Weight: ≈ 151 g (≈ 330 g)
