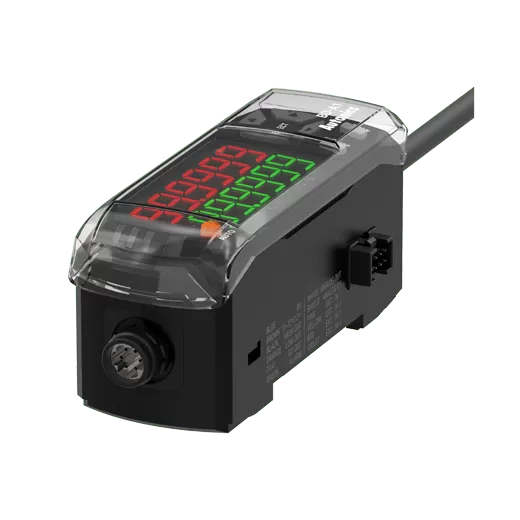

Autonics Displacement Sensors, model BD-A1, from the BD Series product line.
Specifications
- Power supply: 10-30VDC@(=) ±10% (When connecting BD-C Series communication converter, 12-30VDC@(=))
- Power consumption: Max. 2800mW (30VDC@(=))
- Control input: No-voltage input
- Judgment output: NPN or PNP open collector output (Load current: Max. 100mA)
- Alarm output: NPN or PNP open collector output (Load current: Max. 100mA)
- Analog voltage output: -5 - 5 V, 0 - 5 V, 1 - 5 V (resistance: 100 Ω, ± 0.05% F.S., at 10 V)
- Analog current output: ) 4 - 20 mA (load resistance: ≤ 350 Ω, ± 0.2% F.S., at 16 mA)
- Residual voltage: NPN: Max. 1.5V, PNP: Max. 2.5V
- Protection circuit: Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit
- Response time: 0.33, 0.5, 1, 2, 5 ms (5-step adjustment)
- Min. display unit: [BD-030 / 065 / 100] 1 ㎛ </br> [BD-300 / 600] 10 ㎛
- Display method: Dual display by 6-digit, 11-segment LED
- Display range: [BD-030 / 065 / 100] ± 99.999 to ± 99 mm (4-step paramete set) </br>[BD-300 / 600] ± 999.99 to ± 999 mm (3-step parameter set)
- Display cycle: Approx. 100ms
- Insulation resistance: Over 20MΩ (at 500VDC megger)
- Noise immunity: Square shaped noise by noise simulator (pulse width: 1 ㎲) ± 500 V
- Dielectric strength: Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute
- Vibration: 1.5 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours
- Shock: 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
- Environment_Ambient temperature: -10 to 50 ℃, Storage: -15 to 60 ℃ (no freezing or condensation)
- Environment_Ambient humidity: Under 85%RH, storage: under 85%RH
- Protection structure: IP40 (IEC Standards)
- Material: Case: Polycarbonate, Cover: Polycarbonate, Cable: Polyvinyl chloride
- Connection method: Connector type
- Supported sensor head: Sensor head (BD-□)
- Supported comunication converter: Communication converter (BD-C)
- Weight: 126 g (≈ 228 g)
