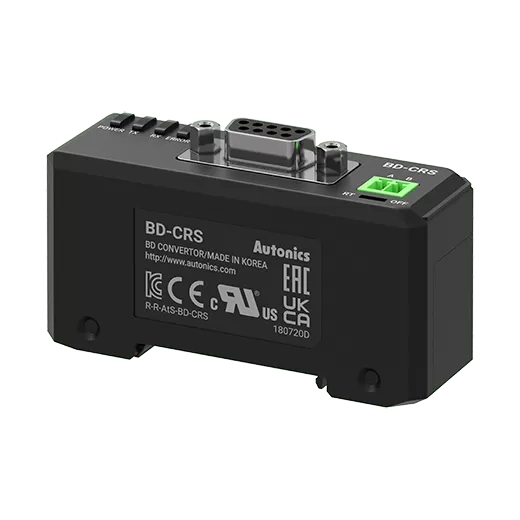

Autonics BD-C Series BD-CRS

List Price:

$520.00

/each

Product Description

Autonics Displacement Sensors, model BD-CRS, from the BD-C Series product line.

Power supply: Using power from the amplifier unit.
Power consumption: Max. 2.3W
Communication function: RS-232C, RS-485
Communication speed: 9600, 19200, 38400, 115200bps (default)
Indication: 4 LED status indicators
Function: • Real-time monitoring</br>• Executes every BD-Series feature and sets parameter by external device (Master)
Environment_Ambient temperature: -10 to 50℃, storage: -15 to 60℃
Environment_Ambient humidity: Under 85%RH, storage: under 85%RH
Vibration: 1.5mm amplitude at frequency of 10 to 50Hzin each X, Y, Z direction for 2 hours
Shock: 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Protection structure: IP40 (IEC Standards)
Material: Case: Polycarbonate
Accessories: Side connector, Connector for RS485
Sold separately: Communication converter (SCM-38I, SCM-US48I, SCM-WF48) Approval Weight※
Weight: Approx. 91g (approx. 49g)
