Autonics BJ Series BJ3M-PDT-C-P

List Price:

$101.00

/each

Product Description

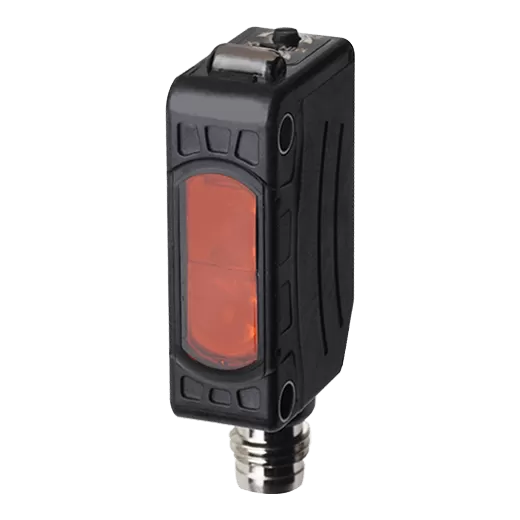

Autonics Photoelectric Sensors, model BJ3M-PDT-C-P, from the BJ Series product line.

Sensing type: Retroreflective type(built-in polarizing filter)
Sensing distance: 3m(MS-2A)
Sensing target: Opaque material of min. Ø75mm
Light source: Red LED(660nm)
Response time: Max. 1ms
Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
Current consumption: Max. 30mA
Sensitivity adjustment: Sensitivity adjuster
Operation mode: Light ON/Dark ON(set by switch)
Control output: PNP open collector
Timer function: -
Connection type: Connector type(M8)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -25 to 55℃, storage: -40 to 70℃
Protection structure: IP67
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): -
Min. diameter of transmitting spot: -
Material: Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,</br>Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,</br>Sleeve: Brass, Ni-plate
Accessories_Common: Fixing bracket, M3 Bolts: 2, M3 Nuts: 2, Adjuster driver
Accessories_Individual: Reflector(MS-2A)
Weight: Approx. 55g (approx. 30g)
