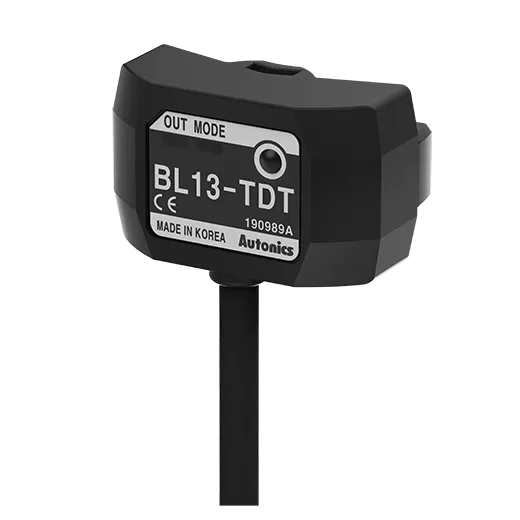

Autonics BL Series BL13-TDT
Part Number #
AUT1049509

Autonics BL Series BL13-TDT

List Price:
$162.00
/each
Product Description

Autonics Photoelectric Sensors, model BL13-TDT, from the BL Series product line.

Specifications

  • Sensing type: Through-beam type
  • Applicable pipe: Using binding band: Ø6 to 13mm,</br>Using protection bracket: Ø12.7mm (1/2 inch) transparent pipe in 1mm thickness (FEP (fluoroplastic) or with equivalent transparency)
  • Standard sensing target: Liquid in a pipe
  • Light source: Infrared LED(950nm)
  • Response time: Max. 2ms
  • Power supply: 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
  • Current consumption: Max. 30mA
  • Operation mode: Light ON/Dark ON(set by button)
  • Control output: NPN open collector
  • Connection type: Cable type(Ø2.5, 1m)
  • Environment_Ambient illumination: Sunlight/Incandescent lamp: Max. 3,000lx for each(received illumination)
  • Environment_Ambient temperature: 10 to 55℃, storage: -25 to 65℃
  • Protection structure: IP64
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Material: Case: Polycarbonate
  • Accessories: Binding band: 2, Anti-slip tube: 2
  • Weight: Approx. 50g(approx. 13g)

Downloadable Materials
