CFT-G02-30-F-22

List Price:

$1,570.00

/each

Product Description

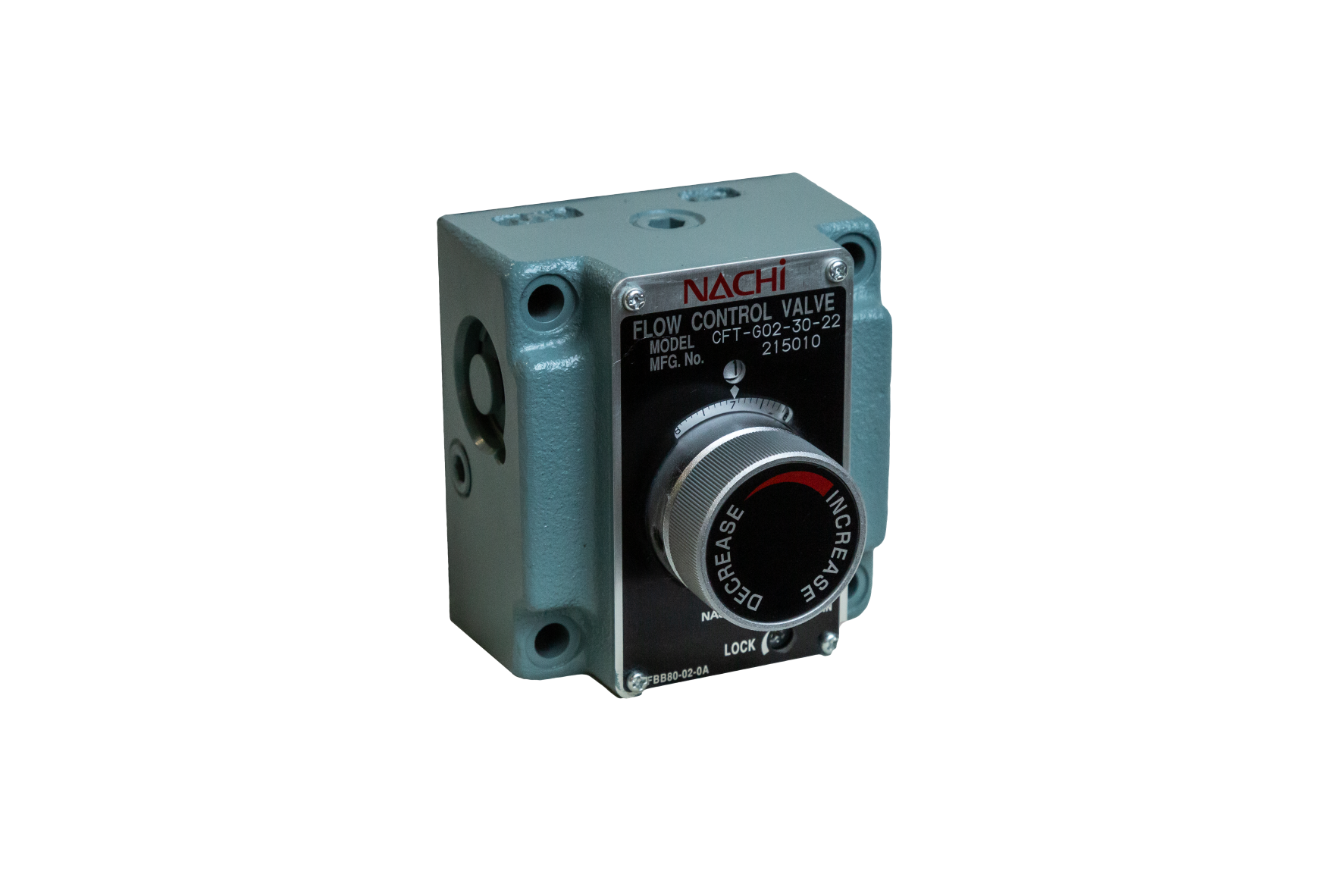

Nachi Temperature Compensated Flow Control and Check Valve, model CFT-G02-30-F-22, is an industrial hydraulic product. Refer to the manufacturer's literature for specifications, selection, installation, and operating details.

Features

Mounting Method: Gasket type
Nominal Diameter: 02 size (1/4")
Max. Control Flow Rate: 30 l/min
Minimum Control Flow Rate: 0.1 l/min
Max. Operating Pressure: 21 MPa
Reverse Flow Rate: Up to 50 l/min
Cracking Pressure: 0.1 MPa
Weight: Approximately 3.7 kg (8.2 lbs)

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Features

Mounting Method: Gasket type
Nominal Diameter: 02 size (1/4")
Max. Control Flow Rate: 30 l/min
Minimum Control Flow Rate: 0.1 l/min
Max. Operating Pressure: 21 MPa
Reverse Flow Rate: Up to 50 l/min
Cracking Pressure: 0.1 MPa
Weight: Approximately 3.7 kg (8.2 lbs)
