Autonics I/O Terminal Block Cables CH20-MP005-8R

Autonics I/O Terminal Block Cables CH20-MP005-8R

Part Number #

AUT1052451

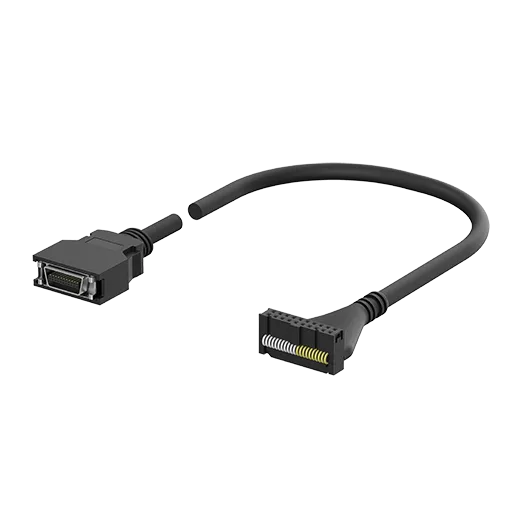

Autonics I/O Terminal Block Cables CH20-MP005-8R

List Price:

$75.00

/each

Product Description

Autonics Cables, model CH20-MP005-8R, from the I/O Terminal Block Cables product line.

Specifications

Connector for PLC: MDR 20pin socket(latch)
Connector for terminal block: Hirose 20pin socket
Number of connector pins: 20-pin
Applicable cable: UL 20276 TWIST 20C
Conductor characteristics: 7/0.127mm(AWG 28)×10P
Insulation diameter: 0.12mm²
Cable diameter: Ø6.3mm(26C)
Rated current: ≤1A
Conductor resistance: ≤0.223Ω/m
Insulation voltage: 500VAC~ 50/60Hz for 1 min.
Insulation resistance: ≥15MΩ/km
Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 46g
