Inch Stainless Compression Fittings


AutomationStore® is pleased to offer high quality Stainless Steel Fittings that are interchangeable and inter-mixable with many major brands.
Please review our Stainless Steel Inch compression catalog at the below link for more info. Standard delivery is 3 weeks, but can be expedited if required.

 Download Inch Stainless Compression Catalog     Download Bilok interchange Chart

Please reference the below Selection Guide to select your fitting model number.
You can also select the model from the catalog and search for any items not listed in the below charts.
The suffix will change to "-SS" on all Stainless Fittings.
Inch Brass Selection Chart Inch Tube X NPT threads

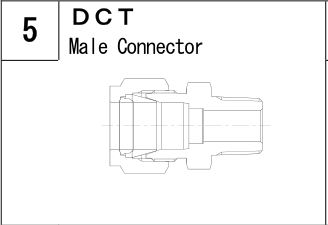

Straight
Tube X Male Thread

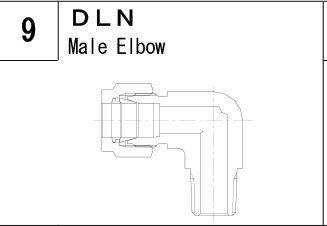

90°Elbow
tube X Male Thread


90° Tube Union


Tube Union Tee

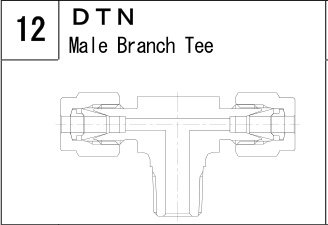

Run Tee


Bulkhead Union
1/8" Tube X 1/8" NPT
 DCT-2-2-SS DLN-2-2-SS DLA-2-SS DTA-2-SS DTN-2-2-SS DSU-2-SS
1/8" Tube X 1/4" NPT  DCT-2-4-SS
 DLN-2-4-SS

1/8" Tube X 3/8" NPT
1/8" Tube X 1/2" NPT

1/4" Tube X 1/8" NPT
 DCT-4-2-SS DLN-4-2-SS     DTN-4-2-SS
1/4" Tube X 1/4" NPT  DCT-4-4-SS
 DLN-4-4-SS
 DLA-4-SS
  DTA-4-SS
 DTN-4-4-SS
 DSU-4-SS
1/4" Tube X 3/8" NPT DCT-4-61-1-SS DLN-4-6-SS
1/4" Tube X 1/2" NPT DCT-4-8-SS DLN-4-8-SS
1/4" Tube X 3/4" NPT DCT-4-12-SS

3/8" Tube X 1/8" NPT DCT-6-2-SS  DLN-6-2-SS

3/8" Tube X 1/4" NPT  DCT-6-4-SS
 DLN-6-4-SS
     DTN-6-4-SS

3/8" Tube X 3/8" NPT  DCT-6-6-SS DLN-6-6-SS DLA-6-SS
  DTA-6-SS DTN-6-6-SS
 DSU-6-SS
3/8" Tube X 1/2" NPT  DCT-6-8-SS DLN-6-8-SS
3/8" Tube X 3/4" NPT  DCT-6-12-SS DLN-6-12-SS

1/2" Tube X 1/4" NPT  DCT-8-4-SS
 DLN-8-4-SS     DTN-8-6-SS
 1/2" Tube X 3/8" NPT DCT-8-6-SS
 DLN-8-6-SS
     DTN-8-8-SS

 1/2" Tube X 1/2" NPT DCT-8-8-SS DLN-8-8-SS DLA-8-SS
 DTA-8-SS
   DSU-8-SS
 1/2" Tube X 3/4" NPT DCT-8-12-SS DLN-8-12-SS
1/2" Tube X 1" NPT  DCT-8-16-SS

3/4" Tube X 1/2" NPT DCT-12-8-SS
 DLN-12-8-SS

3/4" Tube X 3/4" NPT  DCT-12-12-SS
 DLN-12-12-SS  DLA-12-SS  DTA-12-SS   DTN-12-12-SS DSU-12-SS
3/4" Tube X 1" NPT  DCT-12-16-SS

1" Tube X 1/2" NPT  DCT-16-8-SS
1" Tube X 3/4" NPT  DCT-16-12-SS DLN-16-12-SS

 1" Tube X 1" NPT DCT-16-16-SS  DLN-16-16-SS  DLA-16-SS  DTA-16-SS
