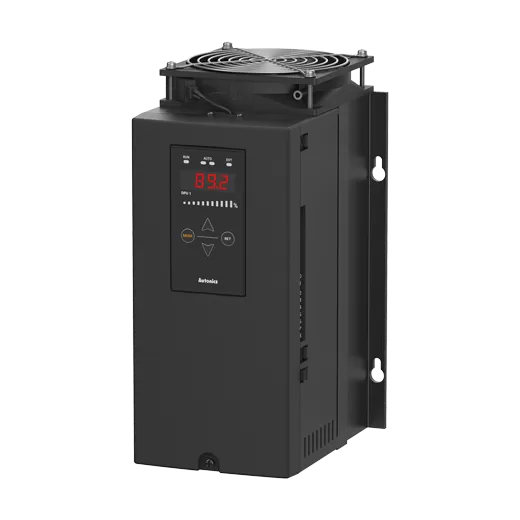

Autonics DPU Series DPU14B-150R

List Price:

$1,276.00

/each

Product Description

Autonics Power Controllers, model DPU14B-150R, from the DPU Series product line.

Number of phase: Single-phase
Power supply: 440V
Output range: Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100%
Control method: • Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback)• Cycle control (Z.C.): Fixed cycle control, Variable cycle control• ON/OFF control (Z.C.)
Load: • Phase control: resistance load, inductive load• ON/OFF, Cycle control: resistance load
Power consumption: ≤ 40 W (control power)
Control input: • Auto: 4-20mA / 0-20mA / 0-5VDC @(=) / 1-5VDC @(=) / 0-10VDC @(=) / voltage pulse (0/12VDC @(=)) / no-voltage input (ON/OFF) / Communication input (RS485)• Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W)
Size: 80~200A
Rated current capacity: 150A
Option: RS485 communication
Environment_Ambient temperature: -10 to 50℃, storage: 20 to 80℃
Environment_Ambient humidity: 5~90%RH
Weight: ≈ 3.0 kg (≈ 5.6 kg)
