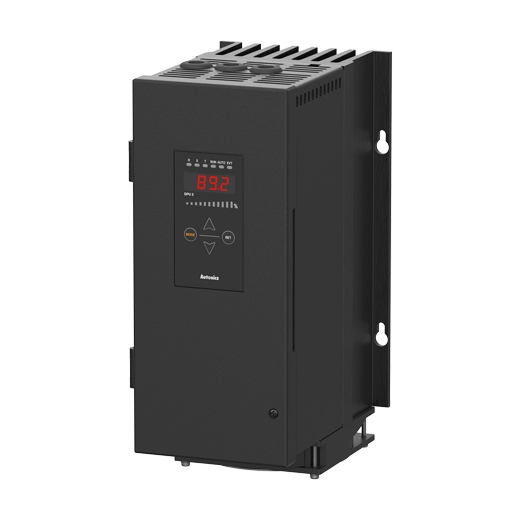

Autonics DPU Series DPU33A-050N-A

List Price:

$1,320.00

/each

Product Description

Autonics Power Controllers, model DPU33A-050N-A, from the DPU Series product line.

Number of phase: 3-phase
Indicator: R, S, T indicator (green)Operation / manual control indicator (green)DI, alarm / unit (V, A) indicator (red)
Control input: ? Auto: 4-20mA / 0-20mA / 0-5VDC @(=) / 1-5VDC @(=) / 0-10VDC @(=) / voltage pulse (0/12VDC @(=)) / no-voltage input (ON/OFF) / Communication input (RS485)? Manual: inside 10k? VR, outside 3 to 10k? VR (min. 2W)
Control method: ? Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback)? Cycle control (Z.C.): Fixed cycle control, Variable cycle control? ON/OFF control (Z.C.)
Load: ? Phase control: resistance load, inductive load? ON/OFF, Cycle control: resistance load
Output range: Phase control: 0 to 98%, Cycle?ON/OFF control: 0 to 100%
Power supply: 380V
Power consumption: ? 60 W (control power)
Rated current capacity: 50A
Option: No option
Environment_Ambient temperature: -10 to 50 ?, storage: -20 to 80 ? (no freezing or condensation)
Environment_Ambient humidity: 5 to 90 %RH, storage: 5 to 90 %RH (no freezing or condensation)
Size: 0~70A
Unit weight (packaged weight): ? 6.5 kg (? 7.6 kg)

Write a Review

Brand:

Autonics Power Controllers, model DPU33A-050N-A, from the DPU Series product line.

Number of phase: 3-phase
Indicator: R, S, T indicator (green)Operation / manual control indicator (green)DI, alarm / unit (V, A) indicator (red)
Control input: ? Auto: 4-20mA / 0-20mA / 0-5VDC @(=) / 1-5VDC @(=) / 0-10VDC @(=) / voltage pulse (0/12VDC @(=)) / no-voltage input (ON/OFF) / Communication input (RS485)? Manual: inside 10k? VR, outside 3 to 10k? VR (min. 2W)
Control method: ? Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback)? Cycle control (Z.C.): Fixed cycle control, Variable cycle control? ON/OFF control (Z.C.)
Load: ? Phase control: resistance load, inductive load? ON/OFF, Cycle control: resistance load
Output range: Phase control: 0 to 98%, Cycle?ON/OFF control: 0 to 100%
Power supply: 380V
Power consumption: ? 60 W (control power)
Rated current capacity: 50A
Option: No option
Environment_Ambient temperature: -10 to 50 ?, storage: -20 to 80 ? (no freezing or condensation)
Environment_Ambient humidity: 5 to 90 %RH, storage: 5 to 90 %RH (no freezing or condensation)
Size: 0~70A
Unit weight (packaged weight): ? 6.5 kg (? 7.6 kg)
