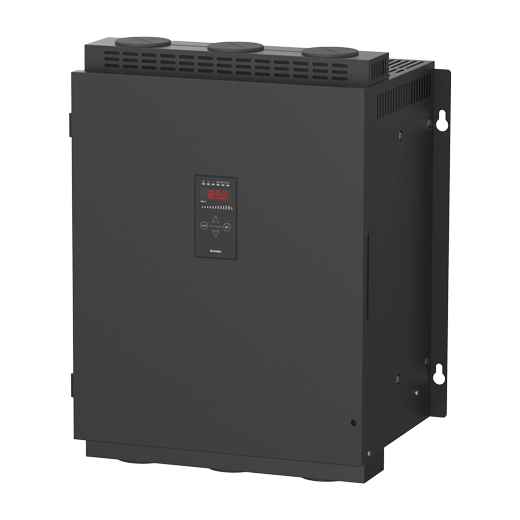

Autonics DPU Series DPU35D-600D

List Price:

$5,272.00

/each

Product Description

Autonics Power Controllers, model DPU35D-600D, from the DPU Series product line.

Number of phase: 3-phase
Indicator: R, S, T indicator (green)Operation / manual control indicator (green)DI, alarm / unit (V, A) indicator (red)
Control input: • Auto: 4-20mA / 0-20mA / 0-5VDC @(=) / 1-5VDC @(=) / 0-10VDC @(=) / voltage pulse (0/12VDC @(=)) / no-voltage input (ON/OFF) / Communication input (RS485)• Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W)
Control method: • Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback)• Cycle control (Z.C.): Fixed cycle control, Variable cycle control• ON/OFF control (Z.C.)
Load: • Phase control: resistance load, inductive load• ON/OFF, Cycle control: resistance load
Output range: Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100%
Power supply: 480 VAC
Power consumption: ≤ 60 W (control power)
Rated current capacity: 600A
Option: Remote Display Unit
Environment_Ambient temperature: -10 to 50 ℃, storage: -20 to 80 ℃ (no freezing or condensation)
Environment_Ambient humidity: 5 to 90 %RH, storage: 5 to 90 %RH (no freezing or condensation)
Size: 400~600A
Unit weight (packaged weight): ≈ 30.8 kg (≈ 35.7 kg)
