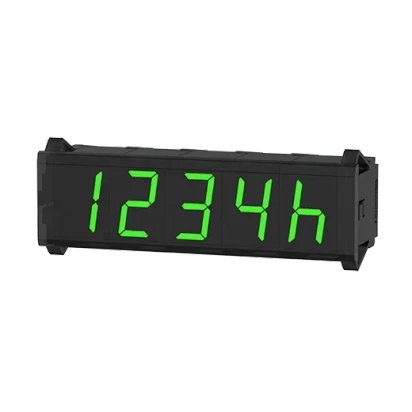

Autonics DS/DA Series DS22-GT

List Price:

$87.00

/each

Product Description

Autonics Display Units, model DS22-GT, from the DS/DA Series product line.

Input method: RS485 communication input
Input logic: -
Display method: 7-segment LED
Display color: Green
Display characters: Displays 64 types of character and sign(0 to 9, A to Z, 27 signs, dot)
Character size: W11.2×H22.5mm
Current consumption: Max. 20mA
Max. Connections: 24 EA
Power supply: 12-24VDC @(=)
Max. Clock: -
Input resistance: 20kΩ
Input level: High: 4.5-24VDC @(=), low: 0-1.2VDC @(=)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Accessories_Basic unit: Right/Left cap: 1, Connector: 1
Accessories_Expansion unit: -
Protection structure: IP40(front panel)
Weight: Approx. 58g(approx. 17g)

Write a Review

Brand:

Autonics Display Units, model DS22-GT, from the DS/DA Series product line.

Input method: RS485 communication input
Input logic: -
Display method: 7-segment LED
Display color: Green
Display characters: Displays 64 types of character and sign(0 to 9, A to Z, 27 signs, dot)
Character size: W11.2×H22.5mm
Current consumption: Max. 20mA
Max. Connections: 24 EA
Power supply: 12-24VDC @(=)
Max. Clock: -
Input resistance: 20kΩ
Input level: High: 4.5-24VDC @(=), low: 0-1.2VDC @(=)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Accessories_Basic unit: Right/Left cap: 1, Connector: 1
Accessories_Expansion unit: -
Protection structure: IP40(front panel)
Weight: Approx. 58g(approx. 17g)
