Autonics DS/DA Series DS60-RR

List Price:

$87.00

/each

Product Description

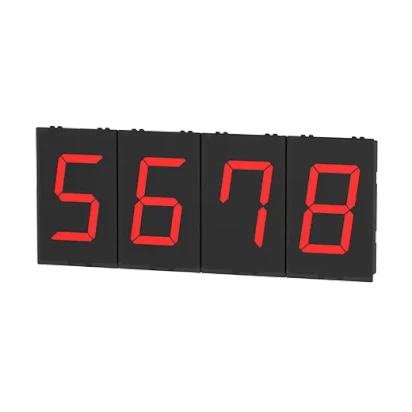

Autonics Display Units, model DS60-RR, from the DS/DA Series product line.

Input method: Pt temperature sensor input(DPt100Ω, JPt100Ω)
Input logic: -
Display method: 7-segment LED
Display color: Red
Display characters: -50℃ to 400.0℃ or -58.0 to 752.0℉(display accuracy ±5.0% F.S.)
Character size: W33.6×H60mm
Current consumption: Max. 65mA
Max. Connections: 4 EA
Power supply: 12-24VDC @(=)
Max. Clock: -
Input resistance: 20kΩ
Input level: High: 4.5-24VDC @(=), low: 0-1.2VDC @(=)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Accessories_Basic unit: -
Accessories_Expansion unit: -
Protection structure: IP40(front panel)
Weight: Approx. 110g(approx. 60g)

Write a Review

Brand:

Autonics Display Units, model DS60-RR, from the DS/DA Series product line.

Input method: Pt temperature sensor input(DPt100Ω, JPt100Ω)
Input logic: -
Display method: 7-segment LED
Display color: Red
Display characters: -50℃ to 400.0℃ or -58.0 to 752.0℉(display accuracy ±5.0% F.S.)
Character size: W33.6×H60mm
Current consumption: Max. 65mA
Max. Connections: 4 EA
Power supply: 12-24VDC @(=)
Max. Clock: -
Input resistance: 20kΩ
Input level: High: 4.5-24VDC @(=), low: 0-1.2VDC @(=)
Environment_Ambient temperature: -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Accessories_Basic unit: -
Accessories_Expansion unit: -
Protection structure: IP40(front panel)
Weight: Approx. 110g(approx. 60g)
