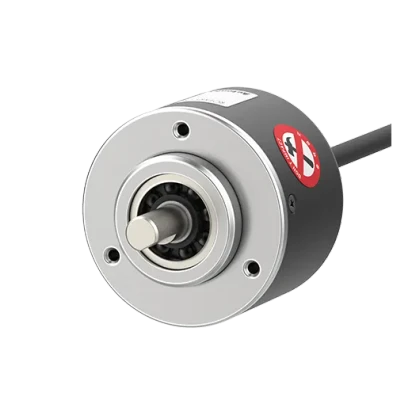

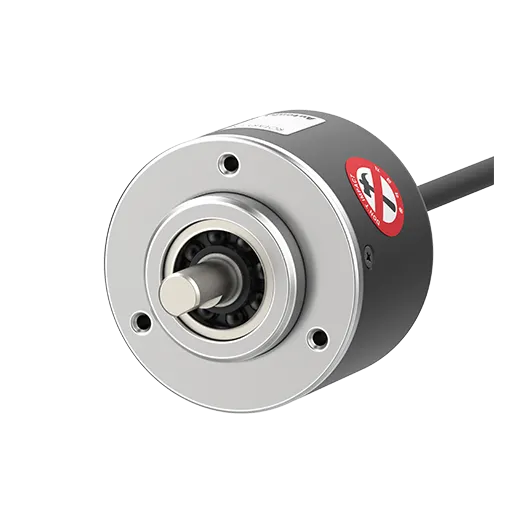

Autonics E50S Series E50S8-50-3-N-24
Part Number #
AUT1050696

Autonics E50S Series E50S8-50-3-N-24

List Price:
$194.00
/each
Product Description

Autonics Rotary Encoders, model E50S8-50-3-N-24, from the E50S Series product line.

Specifications

  • Shaft outer diameter: Ø8mm
  • Max. response frequency: 300kHz
  • Max. allowable revolution: 5000rpm
  • Starting torque: Max. 70gf.cm(max. 0.00686N.m)
  • Resolution: 50P/R
  • Output phase: A, B, Z
  • Control output: NPN open collector
  • Power supply: 12-24VDC @(=) ±5%(ripple P-P: max. 5%)
  • Connection type: Axial cable type
  • Protection structure: IP50 (IEC standard)
  • Environment_Ambient temperature: -10 to 70℃, storage: -25 to 85℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 90% RH
  • Accessories: Ø8mm coupling, Bracket
  • Weight: Approx. 363g(approx. 275g)
