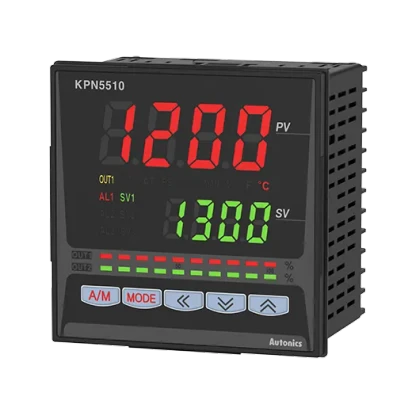

Autonics KPN Series KPN5511-030

List Price:

$400.00

/each

Product Description

Autonics Temperature Controllers, model KPN5511-030, from the KPN Series product line.

Power supply: 100-240VAC~ 50/60Hz
Input type_RTD: JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel120Ω (6 types)
Input type_TC: K, J, E, T, L, N, U, R, S, B, C, G, PLII (13 types)
Input type_Analog: ㆍVoltage: 0-100mV, 0-5 V, 1-5 V, 0-10 V (4 types) ㆍCurrent: 0-20mA, 4-20mA (2 types)
Control method: ON/OFF, P, PI, PD, PID
Sampling cycle: 50ms
Protection structure: IP65(front panel)
Size: DIN W96×H96mm
The number of control ouptut: 2 output type (Heating&Cooling type)
Control output: OUT1: Selectable Current output, SSR drive output, OUT2: Selectable Current output, SSR drive output
Option communication output: None
Option input/output: Transmission output+Remote SV
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 316g(approx. 220g)

Write a Review

Brand:

Autonics Temperature Controllers, model KPN5511-030, from the KPN Series product line.

Power supply: 100-240VAC~ 50/60Hz
Input type_RTD: JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel120Ω (6 types)
Input type_TC: K, J, E, T, L, N, U, R, S, B, C, G, PLII (13 types)
Input type_Analog: ㆍVoltage: 0-100mV, 0-5 V, 1-5 V, 0-10 V (4 types) ㆍCurrent: 0-20mA, 4-20mA (2 types)
Control method: ON/OFF, P, PI, PD, PID
Sampling cycle: 50ms
Protection structure: IP65(front panel)
Size: DIN W96×H96mm
The number of control ouptut: 2 output type (Heating&Cooling type)
Control output: OUT1: Selectable Current output, SSR drive output, OUT2: Selectable Current output, SSR drive output
Option communication output: None
Option input/output: Transmission output+Remote SV
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 316g(approx. 220g)
