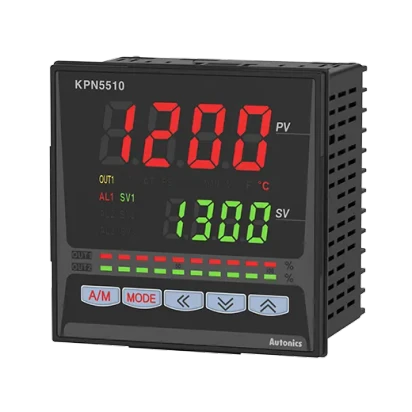

Autonics KPN Series KPN5519-000
Part Number #
AUT1051961

Autonics KPN Series KPN5519-000

List Price:
$363.00
/each
Product Description

Autonics Temperature Controllers, model KPN5519-000, from the KPN Series product line.

Specifications

  • Power supply: 100-240VAC~ 50/60Hz
  • Input type_RTD: JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω, Nikel120Ω (6 types)
  • Input type_TC: K, J, E, T, L, N, U, R, S, B, C, G, PLII (13 types)
  • Input type_Analog: ㆍVoltage: 0-100mV, 0-5 V, 1-5 V, 0-10 V (4 types) ㆍCurrent: 0-20mA, 4-20mA (2 types)
  • Control method: ON/OFF, P, PI, PD, PID
  • Sampling cycle: 50ms
  • Protection structure: IP65(front panel)
  • Size: DIN W96×H96mm
  • The number of control ouptut: 2 output type (Heating&Cooling type)
  • Control output: OUT1: Relay output, OUT2: Relay output
  • Option communication output: None
  • Option input/output: None
  • Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Weight: Approx. 316g(approx. 220g)

Downloadable Materials
