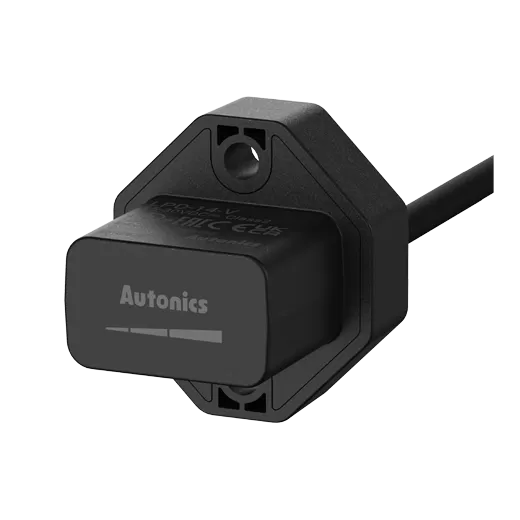

Autonics LPD Series LPD-14-V

List Price:

$444.00

/each

Product Description

Autonics Linear Positioning Sensors, model LPD-14-V, from the LPD Series product line.

Detection range: 14mm
Detection object distance: 0.5 ~ 2.0 mm
Function: Positioning
Detection type: Inductive
Linearity: ± 250µm
Response time: ≤ 30 ms
Power supply: 15 - 30 VDC@(=), Rated voltage: 24 VDC@(=)
Output specification: 0 - 10 VDC@(=)
Load resistance: ≥ 2,000 Ω
Current consumption: ≤ 20 mA
Insulation resistance: ≥ 100 MΩ (500 VDC@(=) megger)
Dielectric strength: Between the charging part and the case: 500 VAC~ 50 / 60 Hz for 1 min
Vibration: 1.0 mm double amplitude at frequency 10 to 55 Hz in each X, Y, Z direction for 30 min.
Shock: Half sinus, 30 g, 11 ms (EN 60068-2-27, Shock)
Protection circuit: Output short over current protection circuit, reverse polarity protection circuit
Ambient temperature: -25 to 70 ℃, storage: -25 to 70 ℃ (no freezing or condensation)
Ambient humidity: 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
Protection structure: IP67(IEC standard)
Standard detection object material: Steel for general structure (SS275, SM45C, etc.).
Material: Housing, sensing part: PBT
Connector type: -
Unit weight (packaged weight): ≈67.74 g (≈ 76.7 g)
