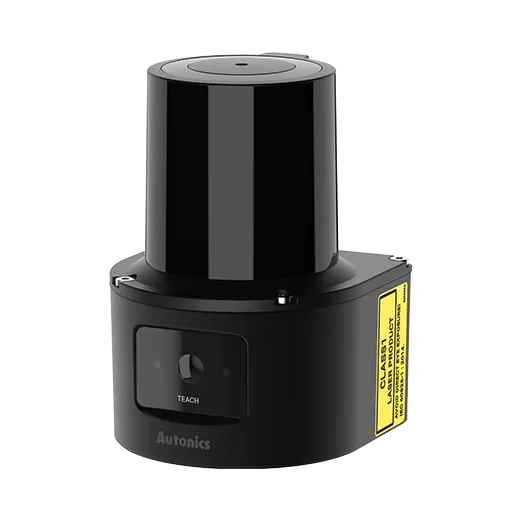

Autonics LSC Series LSC-C10CT3-ET

List Price:

$2,245.00

/each

Product Description

Autonics Lidars, model LSC-C10CT3-ET, from the LSC Series product line.

Environment of use: Indoor
Emitting property: Infrared laser
Laser class: CLASS 1
Emitting property_Wavelength band: 905nm
Emitting property_Max. pulse output power: 6W
Beam conversion angle: 9.5 mrad
Scanning frequency: 15 Hz
Response time: Typ. 67 ms
Monitoring zone: 0.05 ~ 10 m
Min. size of the scanning target: At detection distance of 8 m: ≈ 121 mm
Angular resolution: 0.33°
Aperture angle: 270°
Object reflectivity: Min. 4%
Weight: ≈ 228 g (314 g)
Power supply: 9-28VDC@(=)
Power consumption: ＜ 4 W
Input: 4 Photocoupler inputs - H: ≥ 9-28 VDC@(=), L: ≤ 3 VDC@(=)
Output signal: NPN-PNP open collector output setting (software)
Insulation resistance: ≥ 5 MΩ (500 VDC@(=) megger)
Dielectric strength: 500VAC 50/60Hz for 1 minute
Vibration: 10 sweep cycles in each X, Y, Z axes at sine wave, 10 to 500 Hz, acceleration 5 G
Environment_Ambient illumination: ≤ 80,000 lx
Environment_Ambient temperature: -10 to 50 ℃, storage: -30 to 70 ℃ (no freezing or condensation)
Environment_Ambient humidity: 0 to 95 %RH, storage: 0 to 95 %RH (no freezing or condensation)
Protection structure: IP67(IEC standard)
Connector type: Power I / O: M12 12-pin, Ethernet: M12 8-pin
Material: Case: AL, Window: PC
Communication interface: Ethernet
