Autonics M4N Series M4N-DI-1X
Part Number #
AUT1051058

Autonics M4N Series M4N-DI-1X

List Price:
$72.00
/each
Product Description

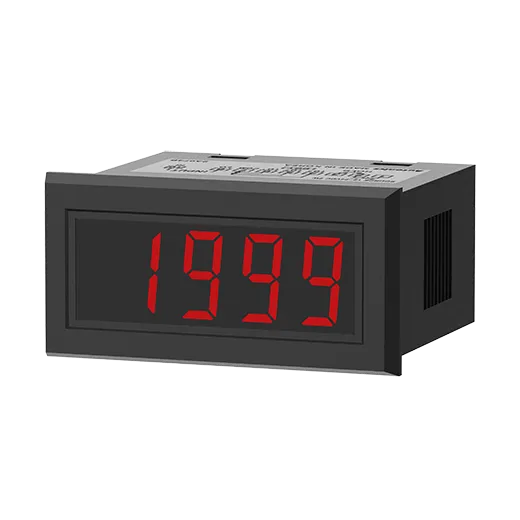

Autonics Digital Panel Meters, model M4N-DI-1X, from the M4N Series product line.

Specifications

  • Display method: 3½-digit 7-segment LED
  • Character height: 10mm
  • Max. display Range: 0 to 1999
  • Measurement: Digital scaling
  • Input specification: DC4-20mA(1-5VDC @(=))
  • AC Measurement: -
  • Power Factor Display: -
  • Power supply: 12-24VDC @(=)
  • Output_Main Output(Comparative Value): Indicator
  • Output_Sub Output(Display Value): -
  • Display accuracy: F.S. 0.2% rdg ±1-digit
  • Sampling cycle: 300ms
  • Max. allowable input: 150% of measurement input range
  • Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Weight: Approx. 44g

Downloadable Materials

Write a Review
  • CAD Model
  • Specifications
Brand:

Autonics Digital Panel Meters, model M4N-DI-1X, from the M4N Series product line.

Specifications

  • Display method: 3½-digit 7-segment LED
  • Character height: 10mm
  • Max. display Range: 0 to 1999
  • Measurement: Digital scaling
  • Input specification: DC4-20mA(1-5VDC @(=))
  • AC Measurement: -
  • Power Factor Display: -
  • Power supply: 12-24VDC @(=)
  • Output_Main Output(Comparative Value): Indicator
  • Output_Sub Output(Display Value): -
  • Display accuracy: F.S. 0.2% rdg ±1-digit
  • Sampling cycle: 300ms
  • Max. allowable input: 150% of measurement input range
  • Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Weight: Approx. 44g

Downloadable Materials
