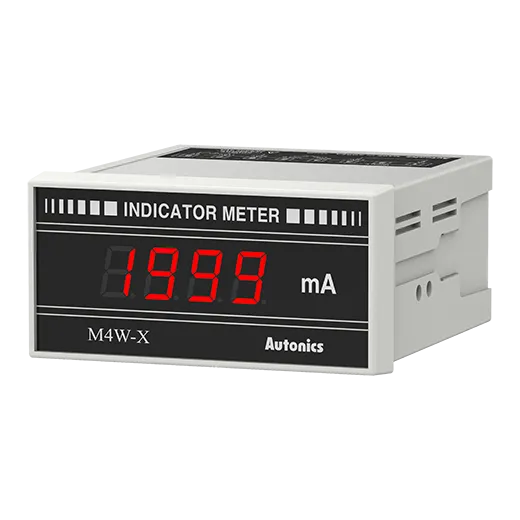

Autonics M4Y, M5W, M4W, M4M (Scaling) Series M4W-DI-XX

Autonics M4Y, M5W, M4W, M4M (Scaling) Series M4W-DI-XX

Part Number #

AUT1051265

Autonics M4Y, M5W, M4W, M4M (Scaling) Series M4W-DI-XX

List Price:

$107.00

/each

Product Description

Autonics Digital Panel Meters, model M4W-DI-XX, from the M4Y, M5W, M4W, M4M (Scaling) Series product line.

Specifications

Display method: 3½-digit 7-segment LED
Character height: 14mm
Measurement: Digital scaling
Input specification: DC4-20mA(1-5VDC @(=))
Max. display Range: 0 to 1999
AC Measurement: -
Power supply(Option): 110/220VAC~ 50/60Hz(100-240VAC~ 50/60Hz)
Output: Indicator
Max. allowable input: 150% for each input specification (at 400VAC:120%)
Display accuracy_AC power: -
Display accuracy_DC power: F.S. ±0.3% rdg ±1-digit
Sampling cycle: 300ms
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 168g

Downloadable Materials
