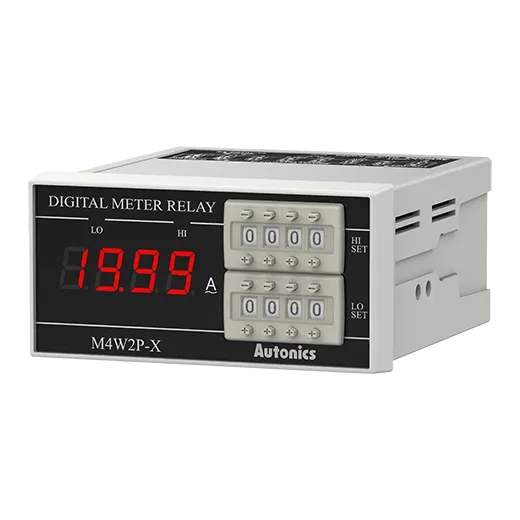

Autonics M4Y, M5W, M4W, M4M (Ammeter) Series M4W2P-AA-4

Autonics M4Y, M5W, M4W, M4M (Ammeter) Series M4W2P-AA-4

Part Number #

AUT1051211

Autonics M4Y, M5W, M4W, M4M (Ammeter) Series M4W2P-AA-4

List Price:

$378.00

/each

Product Description

Autonics Digital Panel Meters, model M4W2P-AA-4, from the M4Y, M5W, M4W, M4M (Ammeter) Series product line.

Specifications

Display method: 3½-digit 7-segment LED
Character height: 10mm
Measurement: AC current
Input specification: 20A/5A(CT)
Max. display Range: 0 to 19.99
AC Measurement: Average value(AVG)
Power supply(Option): 110/220VAC~ 50/60Hz
Output: Relay(HI, LOW)
Max. allowable input: 150% for each input specification (at 400VAC:120%)
Display accuracy_AC power: F.S. ±0.5% rdg ±1-digit
Display accuracy_DC power: -
Sampling cycle: 300ms
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 278g

Downloadable Materials
