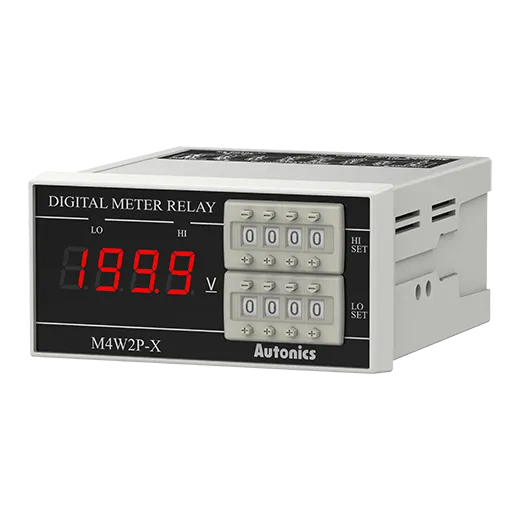

Autonics M4Y, M5W, M4W, M4M (Voltmeter) Series M4W2P-DV-4

List Price:

$378.00

/each

Product Description

Autonics Digital Panel Meters, model M4W2P-DV-4, from the M4Y, M5W, M4W, M4M (Voltmeter) Series product line.

Display method: 3½-digit 7-segment LED
Character height: 10mm
Measurement: DC voltage
Input specification: 199.9V
Max. display Range: 0 to 199.9
AC Measurement: -
Power supply(Option): 110/220VAC~ 50/60Hz(24-70VDC @(=), 100-240VAC~ 50/60Hz)
Output: Relay(HI, LOW)
Max. allowable input: 150% for each input specification (at 400VAC:120%)
Display accuracy_AC power: -
Display accuracy_DC power: F.S. ±0.2% rdg ±1-digit
Sampling cycle: 300ms
Environment_Ambient temperature: -10 to 50℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 278g
