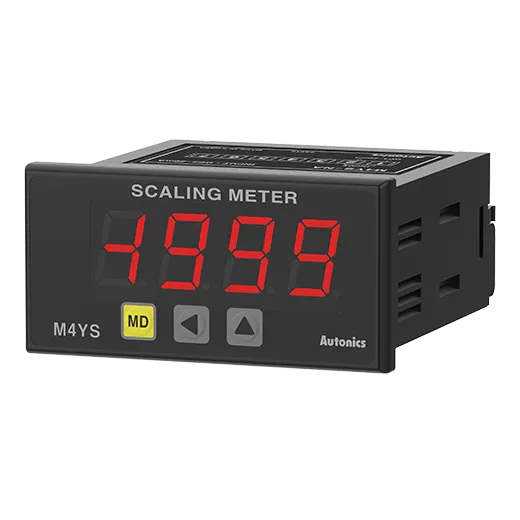

Autonics M4NS/M4YS Series M4YS-NA
Part Number #
AUT1051264

Autonics M4NS/M4YS Series M4YS-NA

List Price:
$107.00
/each
Product Description

Autonics Digital Panel Meters, model M4YS-NA, from the M4NS/M4YS Series product line.

Specifications

  • Display method: 4-digit 7-segment LED
  • Character height: 14mm
  • Max. display Range: -1999 to 9999
  • Measurement: Digital scaling
  • Input specification: DC4-20mA
  • AC Measurement: -
  • Power Factor Display: -
  • Power supply: Loop power
  • Output_Main Output(Comparative Value): Indicator
  • Output_Sub Output(Display Value): -
  • Display accuracy: F.S. 0.3% rdg ±1-digit
  • Display cycle: 0.5 sec/1 sec/2 sec/3 sec/4 sec/5 sec
  • Resolution: 12,000 resolution
  • Environment_Ambient temperature: -10 to 50℃, storage: -25 to 60℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Weight: Approx. 110g
