Autonics M4Y, M5W, M4W, M4M (Voltmeter) Series M5W-DV-4
Part Number #
AUT1051185

Autonics M4Y, M5W, M4W, M4M (Voltmeter) Series M5W-DV-4

List Price:
$121.00
/each
Product Description

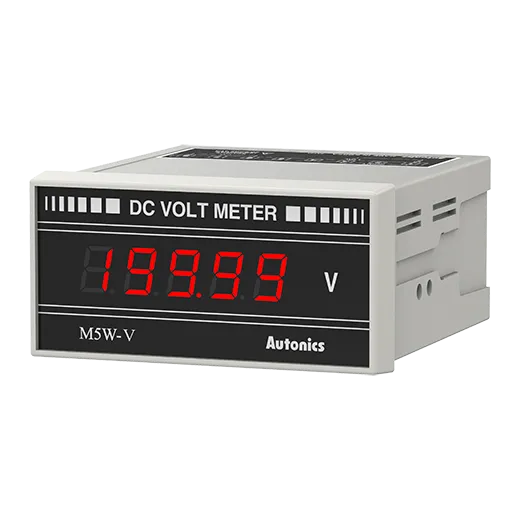

Autonics Digital Panel Meters, model M5W-DV-4, from the M4Y, M5W, M4W, M4M (Voltmeter) Series product line.

Specifications

  • Display method: 4½-digit 7-segment LED
  • Character height: 14mm
  • Measurement: DC voltage
  • Input specification: 199.99V
  • Max. display Range: 0 to 199.99
  • AC Measurement: -
  • Power supply(Option): 100-240VAC~ 50/60Hz
  • Output: Indicator
  • Max. allowable input: 150% for each input specification (at 400VAC:120%)
  • Display accuracy_AC power: -
  • Display accuracy_DC power: F.S. ±0.2% rdg ±1-digit
  • Sampling cycle: 300ms
  • Environment_Ambient temperature: 0 to 50℃, storage: -25 to 65℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
  • Weight: Approx. 172g
