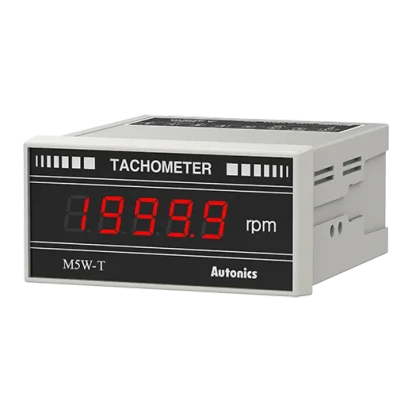

Autonics M4Y, M5W, M4W, M4M (Tachometer / Speed Meter) Series M5W-T-1

Autonics M4Y, M5W, M4W, M4M (Tachometer / Speed Meter) Series M5W-T-1

Part Number #

AUT1051230

Autonics M4Y, M5W, M4W, M4M (Tachometer / Speed Meter) Series M5W-T-1

List Price:

$121.00

/each

Product Description

Autonics Digital Panel Meters, model M5W-T-1, from the M4Y, M5W, M4W, M4M (Tachometer / Speed Meter) Series product line.

Specifications

Display method: 4½-digit 7-segment LED
Character height: 14mm
Measurement: Rotation
Input specification: 0-10VDC
Max. display Range: 0 to 1999.9
AC Measurement: -
Power supply(Option): 100-240VAC~ 50/60Hz
Output: Indicator
Max. allowable input: 150% for each input specification (at 400VAC:120%)
Display accuracy_AC power: -
Display accuracy_DC power: F.S. ±0.2% rdg ±1-digit
Sampling cycle: 300ms
Environment_Ambient temperature: 0 to 50℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 172g

Downloadable Materials

Write a Review

CAD Model
Specifications

Brand:

Autonics Digital Panel Meters, model M5W-T-1, from the M4Y, M5W, M4W, M4M (Tachometer / Speed Meter) Series product line.

Specifications

Display method: 4½-digit 7-segment LED
Character height: 14mm
Measurement: Rotation
Input specification: 0-10VDC
Max. display Range: 0 to 1999.9
AC Measurement: -
Power supply(Option): 100-240VAC~ 50/60Hz
Output: Indicator
Max. allowable input: 150% for each input specification (at 400VAC:120%)
Display accuracy_AC power: -
Display accuracy_DC power: F.S. ±0.2% rdg ±1-digit
Sampling cycle: 300ms
Environment_Ambient temperature: 0 to 50℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Weight: Approx. 172g
