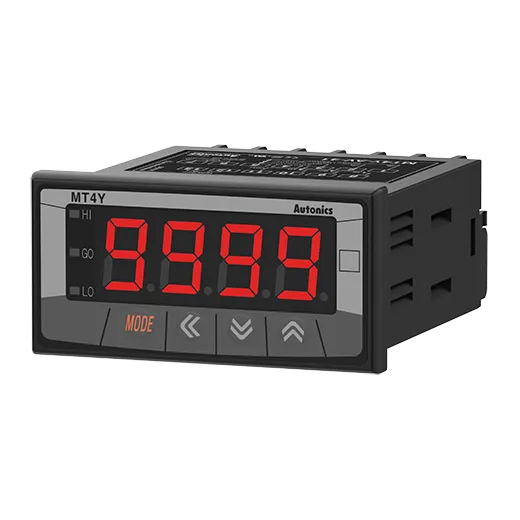

Autonics MT4Y/MT4W Series MT4Y-AA-41

List Price:

$231.00

/each

Product Description

Autonics Digital Panel Meters, model MT4Y-AA-41, from the MT4Y/MT4W Series product line.

Display method: 4-digit 7-segment LED
Character height: 14.2mm
Max. display Range: -1999 to 9999
Measurement: AC current, Frequency
Input specification: 0-5A, 0-2.5A, 0-1A, 0-500mA, 0-250mA, 0-100mA, 0-50mA
AC Measurement: Average value (AVG), Root mean square value (RMS)
Power Factor Display: -
Power supply: 100-240VAC~ 50/60Hz
Output_Main Output(Comparative Value): NPN open collector (HI, GO, LO)
Output_Sub Output(Display Value): -
Display accuracy: • 23℃±5℃ - F.S. ±0.3% rdg±3-digit (frequency: F.S.±0.1% rdg±2-digit)</br>F.S +0.3% rdg ±3-digit max. only for 5A terminal</br>• -10℃ to 50℃ - F.S.±0.5% rdg±3-digit
Max. allowable input: 110% F.S. for each measured input range
A/D conversion method: ΣΔ (Sigma Delta) ADC
Sampling cycle: 16.6ms
Frequency measurement: Measurement range: 0.100 to 9999Hz(variable by decimal point position)
Hold function: Includes (external hold function)
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP56 (front part, IEC standard)
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
Weight: Approx. 213.5g (approx. 134g)
