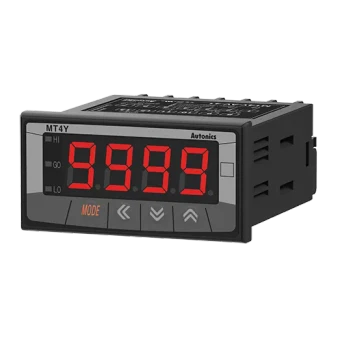

Autonics MT4Y/MT4W Series MT4Y-DA-42

List Price:

$216.00

/each

Product Description

Autonics Digital Panel Meters, model MT4Y-DA-42, from the MT4Y/MT4W Series product line.

Display method: 4-digit 7-segment LED
Character height: 14.2mm
Max. display Range: -1999 to 9999
Measurement: DC current
Input specification: 0-5A, 0-2A, 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA, 0-2mA
AC Measurement: -
Power Factor Display: -
Power supply: 100-240VAC~ 50/60Hz
Output_Main Output(Comparative Value): PNP open collector (HI, GO, LO)
Output_Sub Output(Display Value): -
Display accuracy: • 23℃±5℃ - F.S. ±0.1% rdg ±2-digit</br>F.S. +0.3% rdg ±3-digit max. only for 5A terminal.</br>• -10℃ to 50℃ - F.S. ±0.5% rdg ±3-digit
Max. allowable input: 110% F.S. for each measured input range
A/D conversion method: ΣΔ (Sigma Delta) ADC
Sampling cycle: 50ms
Frequency measurement: -
Hold function: Includes (external hold function)
Environment_Ambient temperature: -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP56 (front part, IEC standard)
Insulation type: Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 1kV)
Weight: Approx. 213.5g (approx. 134g)
