Autonics PR Series PRAWT30-10DC-I
Part Number #
AUT1049969

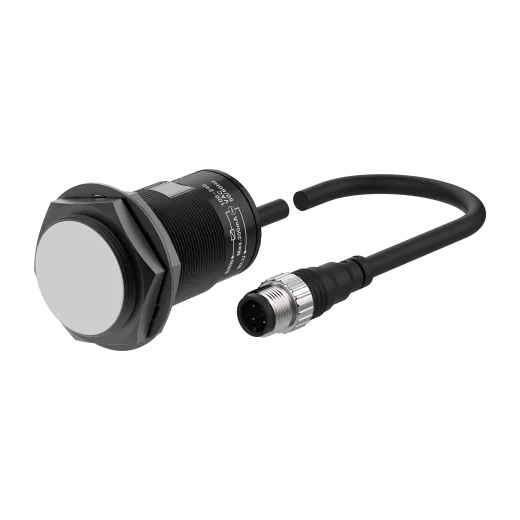

Autonics PR Series PRAWT30-10DC-I

List Price:
$123.00
/each
Product Description

Autonics Inductive Proximity Sensors, model PRAWT30-10DC-I, from the PR Series product line.

Specifications

  • Wire type and power: DC 2-wire type 12-24VDC @(=)
  • Sensing side diameter: M30
  • Sensing distance: 10mm
  • Installation: Flush
  • Standard sensing target: 30×30×1mm(iron)
  • Response frequency: 400Hz
  • Current specification: Leakage current: Max. 0.6mA
  • Control output: Normally Closed
  • Material: Brass(teflon coated)
  • Cable Standard/material: IEC standard
  • Protection structure: IP67(IEC standard)
  • Non-polarity: -
  • Body length: Standard type
  • Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
  • Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
  • Hysteresis(distance): Max. 10% of sensing distance
  • Residual voltage: Max. 3.5V
  • Insulation type: -
  • Weight: Approx. 134g(approx. 122g)
