Autonics PRD Series PRDAWT30-15DO
Part Number #
AUT1050053

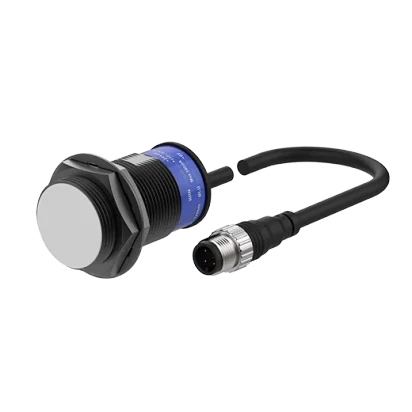

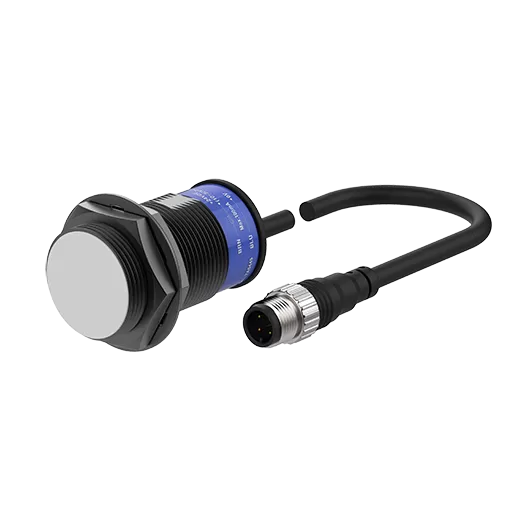

Autonics PRD Series PRDAWT30-15DO

List Price:
$133.00
/each
Product Description

Autonics Inductive Proximity Sensors, model PRDAWT30-15DO, from the PRD Series product line.

Specifications

  • Wire type and power: DC 2-wire type 12-24VDC @(=)
  • Sensing side diameter: M30
  • Sensing distance: 15mm
  • Installation: Shield(flush)
  • Standard sensing target: 45×45×1mm(iron)
  • Response frequency: 100Hz
  • Current specification: Leakage current: Max. 0.6mA
  • Control output: Normally Open
  • Material: Brass(teflon coated)
  • Cable Standard/material: Standard connector
  • Protection structure: IP67
  • Non-polarity: -
  • Body length: Standard type
  • Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
  • Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
  • Hysteresis(distance): Max. 10% of sensing distance
  • Residual voltage: Max. 3.5V
  • Weight: ≈ 143g (≈ 155g)
  • Affection by temperature: -

Downloadable Materials
