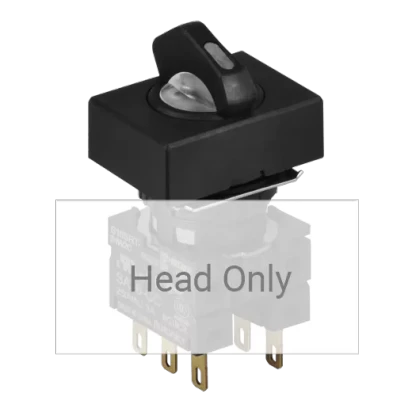

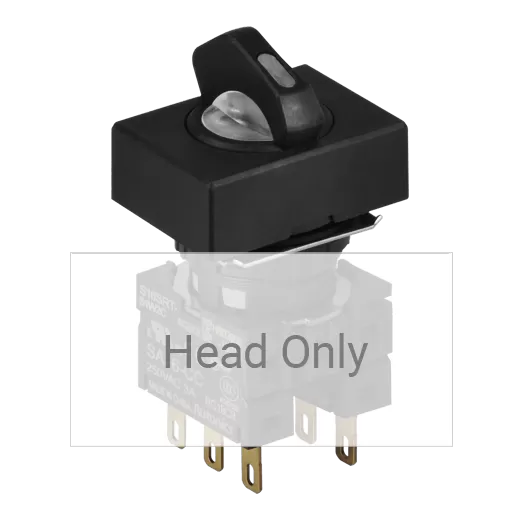

Autonics S16SR Series S16SRT-S1W

List Price:

$5.00

/each

Product Description

Autonics Control Switches, model S16SRT-S1W, from the S16SR Series product line.

Mechanical characteristics_Operation angle: Left 45º , Right 45º
Contact block_Electrical specification_Power voltage/current: 250VAC~/3A
Contact block_Mechanical specification_Terminal tensile force: Max. 30N
Contact block_Mechanical specification_Terminal soldering time: At the end of tips Within 3 sec With 350℃(30W: soldering machine)
LED block_Power supply: -
Protection structure: IP65(IEC standard)
Weight_Body: Approx. 7.7g
Weight_Housing: Approx. 1.4g
Weight_Contact block: Approx. 1.6g
Weight_LED block: Approx. 1.9g
Illuminated: Illuminated
Operation type: 2-position, spring return
Color: White
Contact block: -
Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
