Autonics S2ER Series S2ER-E4RBL
Part Number #
AUT1053125

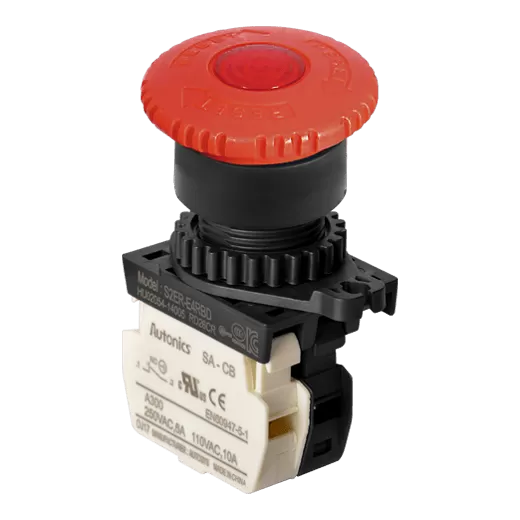

Autonics S2ER Series S2ER-E4RBL

List Price:
$14.00
/each
Product Description

Autonics Control Switches, model S2ER-E4RBL, from the S2ER Series product line.

Specifications

  • Contact block_Electrical specification_Power voltage/current: 110VAC~/10A, 250VAC~/6A
  • LED block_Power supply: 110-220VAC~ 50/60Hz
  • LED block_Current consumption: Max. 20mA
  • Protection structure: IP52
  • Weight_Mounting hole_Ø22/25: Approx. 22.5g
  • Weight_Mounting hole_Ø30: -
  • Weight_Mounting hole_□30: -
  • Weight_Housing: Approx. 7g
  • Weight_Contact block_Modular type A/B contact: -
  • Weight_Contact block_Singular type A/B contact: Approx. 11g
  • Weight_LED block_AC/DC voltage type: -
  • Weight_LED block_AC voltage type: Approx. 12g
  • Operation type: Push-lock, Turn-reset
  • Button type: D40(short head, illuminated)
  • Color: Red
  • Contact block: B contact: 1
  • Contact block type: Singular type
  • Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
  • Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
