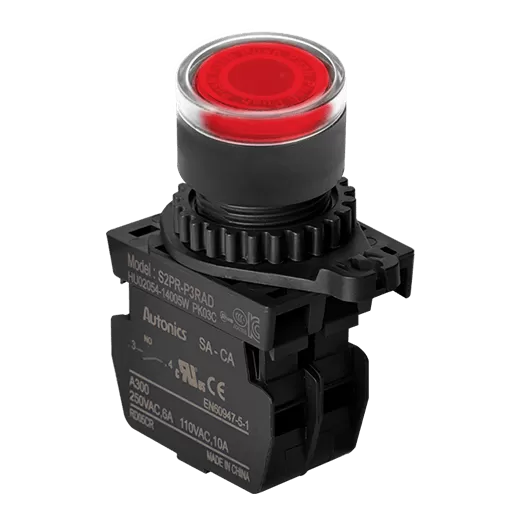

Autonics S2PR Series S2PR-P3RAL

List Price:

$14.00

/each

Product Description

Autonics Control Switches, model S2PR-P3RAL, from the S2PR Series product line.

Contact block_Electrical specification_Power voltage/current: 110VAC~/10A, 250VAC~/6A
LED block_Power supply: 110-220VAC~ 50/60Hz
LED block_Current consumption: Max. 20mA
Protection structure: IP52(IP65 protection structure with waterproof cap for Ø22/25 round push button switches)
Weight_Mounting hole_Ø22/25: Approx. 14.5g
Weight_Mounting hole_Ø30: -
Weight_Mounting hole_□30: -
Weight_Housing: Approx. 7g
Weight_Contact block_Modular type A/B contact: -
Weight_Contact block_Singular type A/B contact: Approx. 11g
Weight_LED block_AC/DC voltage type: -
Weight_LED block_AC voltage type: Approx. 12g
Illuminated: Illuminated
Letter marking: Marking(Push)
Button type: Extended(illuminated)
Color: Red
Contact block: A contact: 1
Contact block type: Singular type
Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
