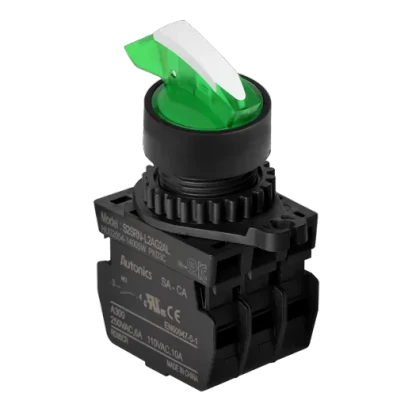

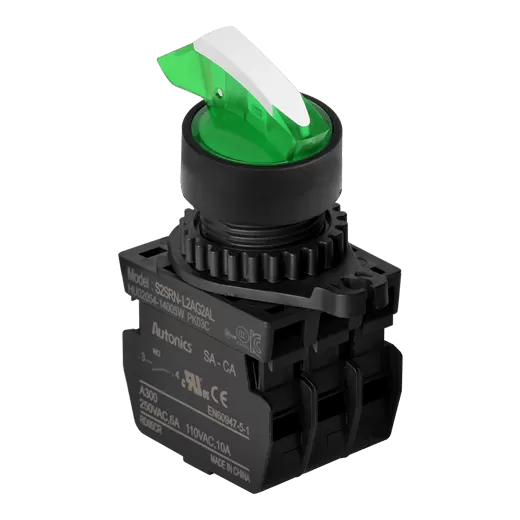

Autonics S2SR Series S2SRN-L8G2AL

List Price:

$17.00

/each

Product Description

Autonics Control Switches, model S2SRN-L8G2AL, from the S2SR Series product line.

Mechanical characteristics_Operation angle: Left 90º , Right 90º
Contact block_Electrical specification_Power voltage/current: 110VAC~/10A, 250VAC~/6A
LED block_Power supply: 110-220VAC~ 50/60Hz
LED block_Current consumption: Max. 20mA
Protection structure: IP52
Weight_Mounting hole_Ø22/25: Approx. 16g
Weight_Mounting hole_Ø30: -
Weight_Mounting hole_□30: -
Weight_Housing: Approx. 7g
Weight_Contact block_Modular type A/B contact: -
Weight_Contact block_Singular type A/B contact: Approx. 11g
Weight_LED block_AC/DC voltage type: -
Weight_LED block_AC voltage type: Approx. 12g
Operation type: Long lever 3-position, maintained
Color: Green
Contact block: A contact: 1, B contact: 1
Contact block type: Singular type
Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
