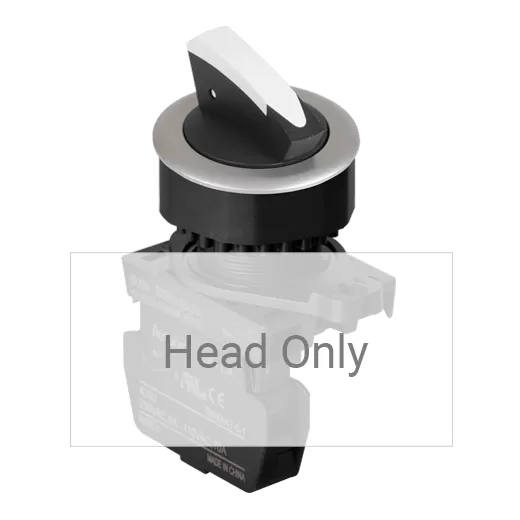

Autonics S2SR Series S2SRN-S3BW

Autonics S2SR Series S2SRN-S3BW

Part Number #

AUT1055763

Autonics S2SR Series S2SRN-S3BW

List Price:

$4.00

/each

Product Description

Autonics Control Switches, model S2SRN-S3BW, from the S2SR Series product line.

Specifications

Mechanical characteristics_Operation angle: Left 45º , Right 45º
Contact block_Electrical specification_Power voltage/current: -
LED block_Power supply: -
LED block_Current consumption: -
Protection structure: IP52
Weight_Mounting hole_Ø22/25: Approx. 16g
Weight_Mounting hole_Ø30: -
Weight_Mounting hole_□30: -
Weight_Housing: Approx. 7g
Weight_Contact block_Modular type A/B contact: -
Weight_Contact block_Singular type A/B contact: -
Weight_LED block_AC/DC voltage type: -
Weight_LED block_AC voltage type: -
Operation type: Short lever 2-position, maintained
Color: White
Contact block: -
Contact block type: -
Environment_Ambient temperature: -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
