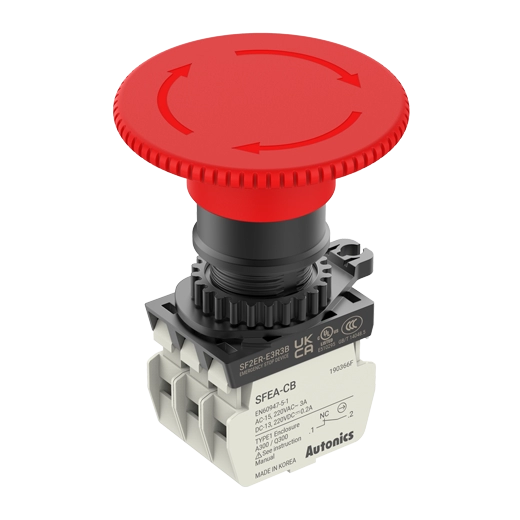

Autonics SF2ER Series SF2ER-E3R3B

List Price:

$30.00

/each

Product Description

Autonics Safety Switches, model SF2ER-E3R3B, from the SF2ER Series product line.

Rated voltage/current: IEC: AC-15 (220VAC~, 3A) DC-13 (220 VDC@(=), 0.2A)</br>UL: A300, Q300
Contact operating power: 30 to 40 N/1 contact
Operation distance: 4.7 mm ± 0.5
Contact operating angle: CW (clock wise) 33 to 37˚
Rotation torque: 0.04 to 0.05 N·m
Allowable operation frequancy_Electrical: 20 times/minute
Allowable operation frequancy_Mechanical: 20 times/minute
Life cycle_Electrical: Min. 100,000 times
Life cycle_Mechanical: Min. 250,000 times
Insulation resistance: 100MΩ or more (500VDC megger basis)
Dielectric strength: 2,500VAC 50/60Hz for 1 minute
Vibration: 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours
Vibration_Malfunction: 1.5mm double amplitude at frequency of 10 to 55 Hzin each X, Y, Z direction for 10 minutes
Shock: 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
Shock_Malfunction: 250m/s² (approx. 25g) in each X, Y, Z direction for 3 times
Environment_Ambient temperature: -20 to 65℃, storage: -40 to 70℃
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP65 (oil resistant, IEC standard)
Material: Button: polycarbonate, body: polyamide 6, lever in fixing unit: polyamide 6
Weight: ≈ 69.3 g
