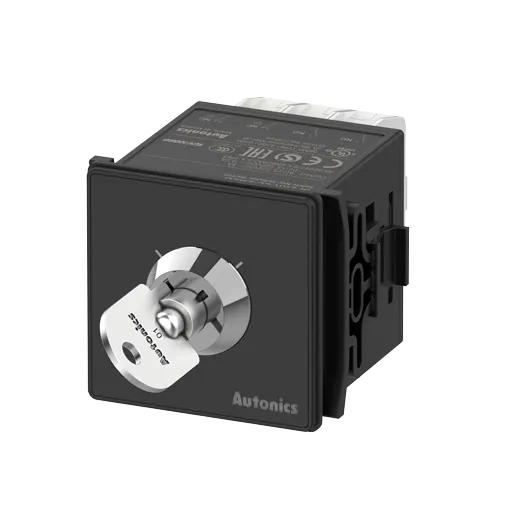

Autonics SF2KR Series SF2KR-RR-3B-06

List Price:

$112.00

/each

Product Description

Autonics Safety Switches, model SF2KR-RR-3B-06, from the SF2KR Series product line.

Solenoid input volatge: -
Solenoid current consumption: -
Indicator: -
Applicable cable: Contact: AWG 18 (0.823 mm²)
Allowable operation frequency: 30 times/minute
Life cycle: Mechanical: ≥ 100,000 times, electrical: ≥ 100,000 times
Key pushing force: ≥ 20 N
Key rotating torque: 0.2 ~ 1.8 N·m
Insulation resistance: ≥ 100 MΩ (500 VDC@(=) megger)
Dielectric strength: 2,500VAC~ 50/60Hz for 1 minute
Vibration: 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours
Shock: 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Ambient temperature: -20 to 70℃ (UL approved ambient temperature: 55 ℃), storage: -40 to 70 ℃ (at no freezing or condensation)
Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Protection structure: IP65 (Front panel, IEC standards)
Material: PC, POM
Weight: ≈ 130 g (≈ 192 g)
